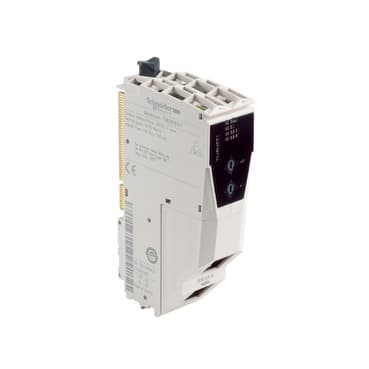

TM5NS31
Product ID:34053
Updated: 2026/7/15
Key Features
- 1Utilize a robust processor for precise control algorithms.
- 2Integrate seamlessly with various sensors and diverse applications.
- 3Exchange real-time data via Ethernet and serial communication ports.
- 4Ensure uninterrupted operation in harsh industrial environments.
- 5Extend module lifecycle with supported firmware upgrades.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Sercos III communication module |
| Physical interface | RJ45 | Range Compatibility | Modicon LMC078 |
| Product Compatibility | Motion controller | Integrated connection type | Ethernet/IP, 2 RJ45 connectors Sercos, 100 Mbit/s |
| Current consumption | 350 mA 5 V DC, base | Device composition | Interface module<br />Bus base ordered separately<br />Power supply ordered separately<br />Terminal block ordered separately |
| Maximum power dissipation in W | 1.75 W | Color | White |
| Local signalling | 1 LED green/red STAT<br />1 LED green/red Sercos III<br />1 LED green Sercos III port 1<br />1 LED green Sercos III port 2 | Net Weight | 0.07 lb(US) (0.03 kg) |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80 MHz...2 GHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
