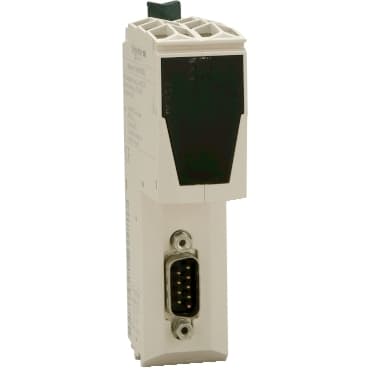

TM5PCRS4
Product ID:34056
Updated: 2026/7/15
Key Features
- 1Expand your Modicon TM5 system with flexible digital, analog, and remote I/O modules.
- 2Simplify setup and reduce downtime via easy cabling and hot-swappable modules.
- 3Ensure better machine performance with robust embedded diagnostics for supervision.
- 4Configure cost-effective solutions with a modular design to meet specific needs.
- 5Enable safe communication over sercos for complete PacDrive 3 safety solutions.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | ASCII serial link communication module |
| Physical interface | RS485 | Range Compatibility | Modicon M258<br />Modicon LMC058 |
| Product Compatibility | Motion controller<br />Logic controller | Integrated connection type | 1 isolated serial link, female SUB-D 9 Modbus ASCII RS485), 115.2 kbit/s max |
| Maximum power dissipation in W | 0.4 W | marking | CE |
| Net Weight | 0.11 lb(US) (0.05 kg) | Standards | CSA C22.2 No 213<br />IEC 61131-2<br />UL 508<br />CSA C22.2 No 142 |
| Product Certifications | GOST-R<br />CSA<br />cULus<br />C-tick | Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| IP degree of protection | IP20IEC 61131-2 | Pollution degree | 2 IEC 60664 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80 MHz...2 GHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
