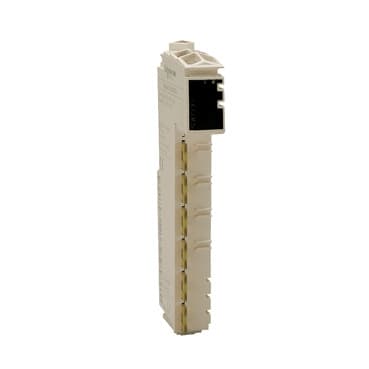

TM5SAO2H
Product ID:34146
Updated: 2026/4/4
Key Features
- 1Deliver precise +/-10V and 0-20mA analog outputs. 2、Achieve high-fidelity control with 16-bit resolution. 3、Simplify installation with standard DIN rail mounting. 4、Integrate seamlessly with Modicon TM5 and LMC058 controllers. 5、Ensure reliable operation from 0°C to 60°C.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Analog output module |
| Analogue output number | 2 | Analogue output resolution | 15 bits + sign, +/- 10 V<br />15 bits, 0...20 mA |
| Range Compatibility | Modicon LMC058<br />Modicon M258 | Product Compatibility | Logic controller<br />Motion controller |
| Analogue output type | Current 0...20 mA<br />Voltage +/- 10 V | Measurement resolution | 305.176 µV, +/- 10 V<br />610.352 nA, 0...20 mA |
| Color | White | Response Time | <= 1 ms |
| Minimum output impedance | 1 Ohm | Sampling duration | 50 ms |
| Measurement error | < 0.045 % of full scale +/- 10 V 25 °C<br />< 0.045 % of full scale 0...20 mA 25 °C | Temperature coefficient | 0.015 %FS/°C current<br />0.015 %FS/°C voltage |
| Non-linearity | < 0.007 %FS/°C current<br />< 0.007 %FS/°C voltage | Type of Cable | Shielded cable |
| Isolation | No insulation between channels<br />500 Vrms AC insulation between channel and bus | Supply | Internal |
| [Us] rated supply voltage | 24 V DC -15...20 % | Local signalling | 1 LED green power supply<br />1 LED red power supply<br />2 LEDs yellow output status |
| Current consumption | 2 mA 5 V DC bus<br />50 mA 24 V DC input/output | Maximum power dissipation in W | 1.21 W |
| marking | CE | Net Weight | 0.055 lb(US) (0.025 kg) |
| Standards | CSA C22.2 No 213<br />UL 508<br />CSA C22.2 No 142<br />IEC 61131-2 | Product Certifications | cULus<br />C-tick<br />GOST-R<br />CSA |
| Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative humidity | 5…95 % without condensation | IP degree of protection | IP20IEC 61131-2 |
| Pollution degree | 2 IEC 60664 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail |
| Shock resistance | 15 gn 11 ms | Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 |
| Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 | Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) |
| Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 | Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
