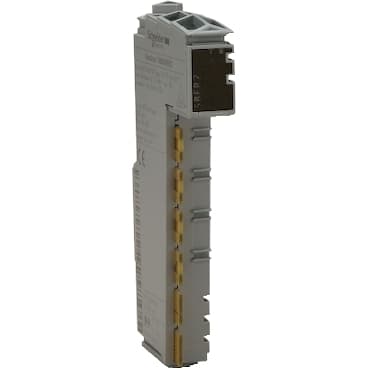

TM5SBER2
Product ID:34150
Updated: 2026/4/4
Key Features
- 1Integrate seamlessly into Modicon TM5 for flexible, scalable I/O islands. 2、Ensure reliable high-performance communication for complex automation. 3、Meet global safety with GOST-R, cULus, C-Tick, and CSA certifications. 4、Reduce energy costs with a compact 0.025kg design and 25mA consumption. 5、Comply with environmental regulations via the Green Premium program.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Remote receiver module |
| Product Specific Application | Communication between remote I/O<br />Distribute power to TM5 bus and I/O | Range Compatibility | Modicon M258<br />Modicon LMC058 |
| Product Compatibility | Logic controller<br />Motion controller | Color | Gray |
| Bus length | 8202.10 ft (2500 m) | Maximum cable distance between devices | 328.08 ft (100 m) |
| Current consumption | 25 mA 24 V DC input/output | Maximum power dissipation in W | 2.22 W |
| Local signalling | 1 LED green power supply<br />1 LED red power bus current<br />1 LED red power supply<br />1 LED yellow communication data bus | marking | CE |
| Net Weight | 0.055 lb(US) (0.025 kg) | Standards | CSA C22.2 No 142<br />CSA C22.2 No 213<br />IEC 61131-2<br />UL 508 |
| Product Certifications | CSA<br />cULus<br />C-tick<br />GOST-R | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation)<br />32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| IP degree of protection | IP20IEC 61131-2<br />IP67 | Pollution degree | 2 IEC 60664 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
