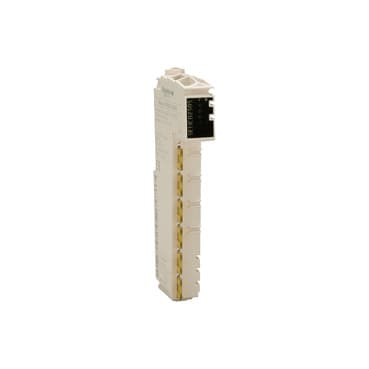

TM5SDI2DF
Product ID:34160
Updated: 2026/4/4
Key Features
- 1Achieve precise 50 kHz counting per channel. 2、Integrate flexibly into Modicon TM5 systems. 3、Ensure reliable 500 Vrms AC insulation. 4、Connect seamlessly with LMC058 and M258 controllers. 5、Meet IEC 61131-2 standards for safety.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Counter module |
| Product Specific Application | Frequency meter<br />Period measurement<br />Frequency generator<br />Upcounting<br />Downcounting | Function of module | Interval measurement<br />Event counting |
| Discrete input number | 2 | Counting frequency | 50 kHz |
| Range Compatibility | Modicon M258<br />Modicon LMC058 | Product Compatibility | Logic controller<br />Motion controller |
| Isolation | 500 Vrms AC insulation between channel and bus<br />No insulation between channels | Discrete input logic | Sink |
| Discrete input voltage | 24 V DC | Discrete input current | 10.5 mA 24 V |
| Input filtering | <= 10 ms hardware<br /><= 25 ms configurable by software | Current consumption | 30 mA 5 V DC bus<br />34 mA 24 V DC input/output |
| Maximum power dissipation in W | 0.97 W | marking | CE |
| Net Weight | 0.055 lb(US) (0.025 kg) | Standards | UL 508<br />CSA C22.2 No 213<br />CSA C22.2 No 142<br />IEC 61131-2 |
| Product Certifications | CSA<br />GOST-R<br />cULus<br />C-tick | Ambient air temperature for operation | 32…131 °F (0…55 °C) without derating horizontal installation)<br />32…140 °F (0…60 °C) with derating factor horizontal installation)<br />32…122 °F (0…50 °C) vertical installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % without condensation |
| IP degree of protection | IP20IEC 61131-2 | Pollution degree | 2 IEC 60664 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz IEC 61000-4-3 |
| Resistance to fast transients | 1 kV IEC 61000-4-4 I/O)<br />1 kV IEC 61000-4-4 shielded cable)<br />2 kV IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
