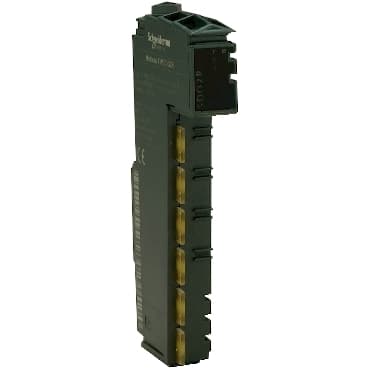

TM5SDI4A
Product ID:34162
Updated: 2026/4/4
Key Features
- 1Scale I/O channels flexibly to meet specific application needs. 2、Supervise systems locally or remotely with embedded diagnostics. 3、Replace modules without system disruption via hot swapping. 4、Simplify installation using spring terminals and removable blocks. 5、Ensure high performance and safety with IP20 modular design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Discrete input module |
| Discrete input number | 4 | Discrete input voltage | 100...240 V |
| Range Compatibility | Modicon M258<br />Modicon LMC058<br />PacDrive LMC motion controller | Product Compatibility | PacDrive LMC Pro<br />Logic controller<br />PacDrive LMC Pro 2<br />Motion controller<br />PacDrive LMC Eco |
| Discrete input voltage type | AC | input voltage limits | 100...240 V |
| Discrete input current | 5…11 mA | Color | Black |
| Input filtering | <= 25 ms configurable by software<br /><= 30 ms hardware from state 1 to state 0<br /><= 40 ms hardware from state 0 to state 1 | Isolation | No insulation between channels<br />2500 V AC insulation between channel and bus for 1 minute |
| Current consumption | 34 mA 5 V DC bus | Maximum power dissipation in W | 1.08 W |
| Local signalling | 1 LED green power supply<br />1 LED red power supply<br />4 LEDs green input status | Electrical connection | 2 wires |
| marking | CE | Net Weight | 0.055 lb(US) (0.025 kg) |
| Standards | UL 508<br />CSA C22.2 No 142<br />IEC 61131-2<br />CSA C22.2 No 213 | Product Certifications | cULus<br />CSA<br />GOST-R<br />C-tick |
| Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation)<br />14…140 °F (-10…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| Relative Humidity | 5…95 % without condensation | IP degree of protection | IP20IEC 61131-2 |
| Pollution degree | 2 IEC 60664 | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail |
| Shock resistance | 15 gn 11 ms | Electromagnetic compatibility | Electrostatic discharge immunity test, 4 kV on contact IEC 61000-4-2<br />Electrostatic discharge immunity test, 8 kV in air IEC 61000-4-2<br />Susceptibility to electromagnetic fields, 1 V/m 2...2.7 GHz IEC 61000-4-3<br />Susceptibility to electromagnetic fields, 10 V/m 80...2000 MHz IEC 61000-4-3<br />Electrical fast transient/burst immunity test, 1 kV I/O IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 1 kV shielded cable IEC 61000-4-4<br />Electrical fast transient/burst immunity test, 2 kV power lines IEC 61000-4-4<br />1.2/50 µs shock waves immunity test, 0.5 kV differential mode IEC 61000-4-5<br />1.2/50 µs shock waves immunity test, 1 kV common mode IEC 61000-4-5<br />Conducted RF disturbances IEC 61000-4-6<br />Conducted and radiated emissions CISPR 11 |
Specifications may be subject to change without notice
