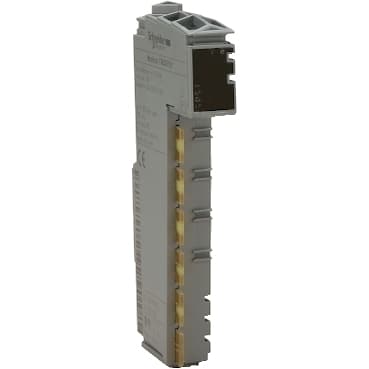

TM5SPS1
Product ID:34080
Updated: 2026/7/15
Key Features
- 1Support distributed I/Os via CANopen and local/remote expansion via TM5 bus.
- 2Simplify maintenance with embedded diagnostics and hot-swappable I/O modules.
- 3Ensure high compatibility with SoMachine software and certified FDT/DTM technology.
- 4Achieve cabling simplicity using spring terminals and removable terminal blocks.
- 5Meet environmental compliance as a Green Premium product with low impact.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Power distribution module |
| Product Specific Application | Supply 24 V DC I/O modules | Range Compatibility | Modicon M258<br />Modicon LMC058 |
| Product Compatibility | Logic controller<br />Motion controller | [Us] rated supply voltage | 24 V |
| Network type | DC | current supplied | 10 A I/O power segment |
| Maximum power dissipation in W | 0.8 W | Color | Gray |
| Short-circuit protection | 10 A external fuse | Current consumption | <= 25 mA 24 V DC |
| marking | CE | Standards | CSA C22.2 No 142<br />CSA C22.2 No 213<br />UL 508<br />IEC 61131-2 |
| Product Certifications | GOST-R<br />C-tick<br />cULus<br />CSA | Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation)<br />131…140 °F (55…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact EN/IEC 61000-4-2<br />8 kV in air EN/IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz EN/IEC 61000-4-3 |
| Resistance to fast transients | 1 kV EN/IEC 61000-4-4 I/O)<br />1 kV EN/IEC 61000-4-4 shielded cable)<br />2 kV EN/IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode EN/IEC 61000-4-5<br />1 kV common mode EN/IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
