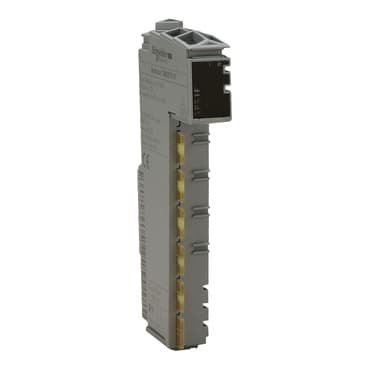

TM5SPS1F
Product ID:34082
Updated: 2026/7/15
Key Features
- 1Distribute 24V DC power for I/O applications with 1.02W max dissipation.
- 2Protect circuits with an integrated 6.3A fuse for enhanced safety.
- 3Scale your system flexibly within the Modicon TM5 automation range.
- 4Meet global standards including IEC, UL, and CSA for compliance.
- 5Install easily on a 35mm DIN rail for quick integration.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM5 | Product or Component Type | Power distribution module with internal fuse |
| Product Specific Application | Supply 24 V DC I/O modules | Range Compatibility | Modicon M258<br />Modicon LMC058 |
| Product Compatibility | Motion controller<br />Logic controller | [Us] rated supply voltage | 24 V |
| Network type | DC | current supplied | 6.3 A I/O power segment |
| Maximum power dissipation in W | 1.02 W | Color | Gray |
| Short-circuit protection | 6.3 A internal fuse | Current consumption | <= 34 mA 24 V DC |
| marking | CE | Standards | IEC 61131-2<br />UL 508<br />CSA C22.2 No 142<br />CSA C22.2 No 213 |
| Product Certifications | C-tick<br />CSA<br />GOST-R<br />cULus | Ambient air temperature for operation | 14…131 °F (-10…55 °C) without derating horizontal installation)<br />131…140 °F (55…60 °C) with derating factor horizontal installation)<br />14…122 °F (-10…50 °C) vertical installation) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative humidity | 5…95 % without condensation |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 1 gn 8.4…150 Hz DIN rail<br />3.5 mm 5…8.4 Hz DIN rail | Shock resistance | 15 gn 11 ms |
| Resistance to electrostatic discharge | 4 kV on contact EN/IEC 61000-4-2<br />8 kV in air EN/IEC 61000-4-2 | Resistance to electromagnetic fields | 0.9 V/m (1 V/m) 2...2.7 GHz EN/IEC 61000-4-3<br />9.1 V/m (10 V/m) 80...2000 MHz EN/IEC 61000-4-3 |
| Resistance to fast transients | 1 kV EN/IEC 61000-4-4 I/O)<br />1 kV EN/IEC 61000-4-4 shielded cable)<br />2 kV EN/IEC 61000-4-4 power lines) | Surge withstand | 0.5 kV differential mode EN/IEC 61000-4-5<br />1 kV common mode EN/IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
