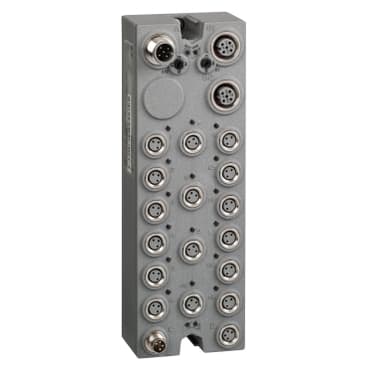

TM7NCOM16B
Product ID:34232
Updated: 2026/4/6
Key Features
- 1Integrate seamlessly with Modicon TM7 systems for enhanced automation. 2、Deploy reliably in harsh conditions with its IP67 protection rating. 3、Connect up to 16 devices using versatile M8 connectors. 4、Communicate efficiently across networks via the CANopen protocol. 5、Ensure long-term performance with Schneider Electric's quality.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM7 | Product or Component Type | CANopen interface I/O block |
| Range Compatibility | Modicon LMC058<br />Modicon M258 | Enclosure Material | Plastic |
| Bus type | CANopen | [Ue] rated operational voltage | 24 V DC |
| Input/output number | 16 | input/output number of block | 16 I/O |
| Discrete input number | 0…16 configurable by software | Discrete input voltage | 24 V |
| Discrete input voltage type | DC | Discrete input current | 4.4 mA |
| Discrete input logic | Positive | Discrete output number | 0…16 configurable by software |
| Discrete output voltage | 24 V | Discrete output voltage type | DC |
| Discrete output current | <= 0.5 A | Discrete output type | Transistor |
| Sensor power supply | 24 V, 500 mA for all channels overload, short-circuit and reverse polarity protection | Electrical connection | 1 male connector M12 - A coding - 5 ways CANopen bus IN<br />1 female connector M12 - B coding - 4 ways TM7 bus OUT<br />1 male connector M8 - 4 ways power IN<br />1 female connector M8 - 4 ways power OUT<br />1 female connector M12 - A coding - 5 ways CANopen bus OUT<br />16 female connectors M8 - 3 ways sensor or actuator |
| Local signalling | for bus diagnostic 2 LEDs<br /> for actuator power supply diagnostics 1 LED<br /> for sensor power supply diagnostics 1 LED | Operating position | Any position |
| Fixing Mode | By 2 screws | Net Weight | 0.71 lb(US) (0.32 kg) |
| Standards | IEC 61131-2 | Product Certifications | GOST-R<br />C-tick<br />ATEX II 3g EEx nA II T5<br />cURus |
| marking | CE | Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) |
| Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) | Relative humidity | 5…95 % without condensation or dripping water |
| Pollution degree | 2 IEC 60664 | IP degree of protection | IP67 conforming to IEC 61131-2 |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) |
| Vibration resistance | 7.5 mm constant amplitude 2…8 Hz)IEC 60721-3-5 Class 5M3<br />2 gn constant acceleration 8…200 Hz)IEC 60721-3-5 Class 5M3<br />4 gn constant acceleration 200…500 Hz)IEC 60721-3-5 Class 5M3 | Shock resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 |
| Resistance to electrostatic discharge | 6 kV in contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 | Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 0.08…2 Hz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2…2.7 Hz IEC 61000-4-3 |
| Resistance to fast transients | 2 kV IEC 61000-4-4 power supply)<br />1 kV IEC 61000-4-4 input/output)<br />1 kV IEC 61000-4-4 shielded cable) | surge withstand for DC 24 V circuit | 1 kV power supply (common mode) IEC 61000-4-5<br />0.5 kV power supply (differential mode) IEC 61000-4-5<br />1 kV unshielded links (common mode) IEC 61000-4-5<br />0.5 kV unshielded links (differential mode) IEC 61000-4-5<br />1 kV shielded links (common mode) IEC 61000-4-5<br />0.5 kV shielded links (differential mode) IEC 61000-4-5 |
| Electromagnetic compatibility | EN/IEC 61000-4-6 | Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
