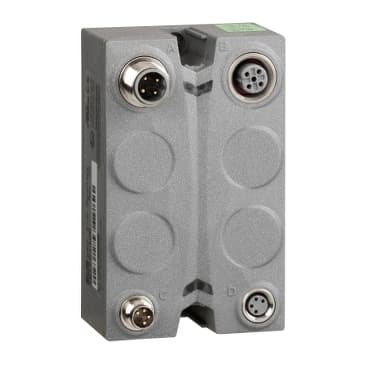

TM7SPS1A
Product ID:34235
Updated: 2026/7/15
Key Features
- 1Deliver 24V DC and 15W for stable controller operation.
- 2Feature M12 and M8 connectors for secure TM7 bus connections.
- 3Mount on DIN rails, frames, or machines per torque specs.
- 4Meet IEC 61131-2 and ATEX II 3g standards for safety.
- 5Ensure reliable power in compact, lightweight industrial designs.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TM7 | Product or Component Type | Power distribution module |
| Range Compatibility | Modicon LMC058<br />Modicon M258 | Product Compatibility | Motion controller<br />Logic controller |
| Product Specific Application | Supply 24 V DC I/O modules and bus TM7 | [Us] rated supply voltage | 24 V |
| Supply circuit type | DC | Electrical connection | 1 male + 1 female connectors M8 power supply)<br />1 male + 1 female connectors M12 TM7 bus) |
| Local signalling | for sensor/actuator power supply status 2 LEDs | Nominal power | 15 W |
| Operating position | Any position | Fixing Mode | By 2 screws |
| Net Weight | 0.42 lb(US) (0.19 kg) | Standards | IEC 61131-2 |
| Product Certifications | C-tick<br />ATEX II 3g EEx nA II T5<br />GOST-R<br />cURus | marking | CE |
| Ambient Air Temperature for Operation | 14…140 °F (-10…60 °C) | Ambient Air Temperature for Storage | -13…185 °F (-25…85 °C) |
| Relative humidity | 5…95 % without condensation | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…9842.5 ft (0…3000 m) | Vibration resistance | 7.5 mm constant amplitude 2…8 Hz)IEC 60721-3-5 Class 5M3<br />2 gn constant acceleration 8…200 Hz)IEC 60721-3-5 Class 5M3<br />4 gn constant acceleration 200…500 Hz)IEC 60721-3-5 Class 5M3 |
| Shock resistance | 30 gn 11 ms IEC 60721-3-5 Class 5M3 | Resistance to electrostatic discharge | 6 kV in contact IEC 61000-4-2<br />8 kV in air IEC 61000-4-2 |
| Resistance to electromagnetic fields | 9.1 V/m (10 V/m) 0.08…2 Hz IEC 61000-4-3<br />0.9 V/m (1 V/m) 2…2.7 Hz IEC 61000-4-3 | Resistance to fast transients | 2 kV IEC 61000-4-4 power supply)<br />1 kV IEC 61000-4-4 input/output)<br />1 kV IEC 61000-4-4 shielded cable) |
| Surge withstand | 0.5 kV differential mode IEC 61000-4-5<br />1 kV common mode IEC 61000-4-5 | Electromagnetic compatibility | EN/IEC 61000-4-6 |
| Disturbance radiated/conducted | CISPR 11 |
Specifications may be subject to change without notice
