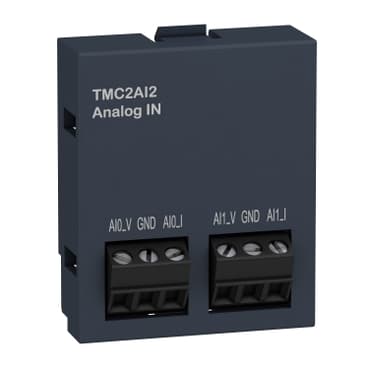

TMC2AI2
Product ID:34248
Updated: 2026/7/15
Key Features
- 1Achieve precise data capture with 12-bit resolution.
- 2Fit into tight spaces with compact 15x35x41 mm dimensions.
- 3Ensure secure connections using twisted shielded pairs and screw terminals.
- 4Process data rapidly with a 20 ms conversion time.
- 5Integrate seamlessly with Modicon M221 Nano PLC for efficient automation.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M221 | Product or Component Type | Analogue input cartridge |
| Product Compatibility | Modicon M221C | Analogue input number | 2 |
| Analogue input type | current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V | Analogue input resolution | 12 bits |
| LSB value | 2.44 mV 0...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current | Conversion time | 20 ms |
| Sampling duration | 10 ms | Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C)<br />+/- 1 % of full scale |
| Temperature Drift | +/- 0.02 %FS/°C | Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.01 %FS | Cross talk | <= 1 LSB |
| Type of Cable | Twisted shielded pairs cable | Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs |
| Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input | Insulation | Non-insulated between analogue input and internal logic |
| Height | 1.6 in (41 mm) | Depth | 0.6 in (15 mm) |
| Width | 1.4 in (35 mm) | Net Weight | 0.033 lb(US) (0.015 kg) |
| Permissible continuous overload | 13 V voltage<br />40 mA current | Input impedance | <= 250 Ohm current<br />>= 1 MOhm voltage |
| Immunity to microbreaks | 10 ms |
