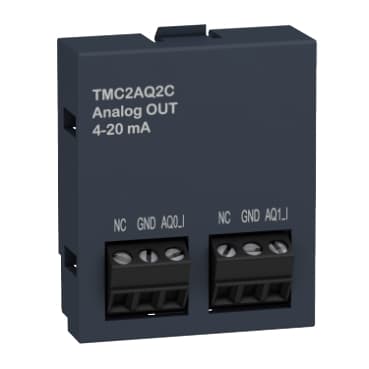

TMC2AQ2C
Product ID:34249
Updated: 2026/7/15
Key Features
- 1Extend I/O for Modicon M221 machines.
- 2Provide 2 precise 12-bit analog current outputs.
- 3Ensure quick setup with minimal installation.
- 4Feature reliable twisted shielded input cables.
- 5Support sustainability with recyclable packaging.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M221 | Product or Component Type | Analogue output cartridge |
| Product Compatibility | Modicon M221C | Analogue output number | 2 |
| Analogue output type | Current 4...20 mA | Analogue output resolution | 12 bits |
| LSB value | 3.91 µA 4...20 mA current | Load type | Resistive |
| Load impedance ohmic | <= 500 Ohm | Conversion time | 20 ms |
| Stabilisation time | 40 ms | Absolute accuracy error | +/- 1 % of full scale<br />+/- 0.3 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.02 %FS/°C | Repeat accuracy | +/- 0.4 %FS |
| Non-linearity | +/- 0.01 %FS | Cross talk | <= 1 LSB |
| Type of Cable | Twisted shielded pairs cable | Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for outputs |
| Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) output | Insulation | Non-insulated between analogue output and internal logic |
| Height | 1.6 in (41 mm) | Depth | 0.6 in (15 mm) |
| Width | 1.4 in (35 mm) | Net Weight | 0.033 lb(US) (0.015 kg) |
| Immunity to microbreaks | 10 ms |
Specifications may be subject to change without notice
