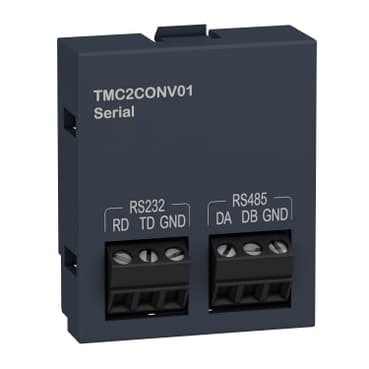

TMC2CONV01
Product ID:34251
Updated: 2026/7/15
Key Features
- 1Support RS232 and RS485 non-isolated serial links for seamless communication.
- 2Enable Modbus master-slave protocols for efficient industrial data transfer.
- 3Integrate compactly with a height of just 41 mm for space-constrained panels.
- 4Meet Green Premium standards for sustainable and responsible operations.
- 5Expand Modicon M221C capabilities for conveying applications easily.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M221 | Product or Component Type | Serial line cartridge |
| Product Compatibility | Modicon M221C | Product Specific Application | Conveying applications |
| Integrated connection type | Non isolated serial link - screw terminal block RS232<br />Non isolated serial link - screw terminal block RS485 | Transmission rate | 1.2...115.2 kbit/s (115.2 kbit/s by default) 49.2 ft (15 m) RS485<br />1.2...115.2 kbit/s (115.2 kbit/s by default) 9.8 ft (3 m) RS232 |
| Communication port protocol | Non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network | Insulation | Non-insulated between lines and internal logic |
| Height | 1.6 in (41 mm) | Depth | 0.6 in (15 mm) |
| Width | 1.4 in (35 mm) | Net Weight | 0.033 lb(US) (0.015 kg) |
Specifications may be subject to change without notice
