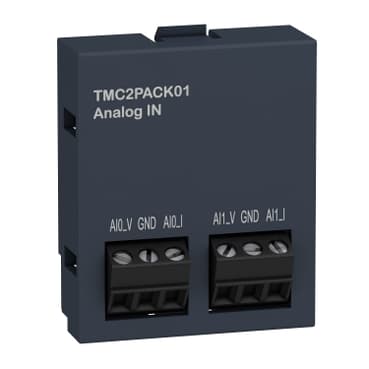

TMC2PACK01
Product ID:34253
Updated: 2026/7/15
Key Features
- 1Ensure environmental compliance with materials free of toxic heavy metals, mercury, and PVC.
- 2Acquire precise analog signals with 12-bit resolution for 0-10Vdc or 0-20mA inputs.
- 3Simplify installation using screw terminal blocks and plug-in mounting.
- 4Operate reliably in a wide temperature range from -10 to +55°C.
- 5Process data accurately with high-resolution 12-bit signal handling.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M221 | Product or Component Type | Analogue input cartridge |
| Product Specific Application | Packaging | Product Compatibility | Modicon M221C |
| Analogue input number | 2 | Analogue input type | current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V |
| Analogue input resolution | 12 bits | LSB value | 2.44 mV 0...10 V voltage<br />4.88 µA 0...20 mA current<br />3.91 µA 4...20 mA current |
| Conversion time | 20 ms | Sampling duration | 10 ms |
| Absolute accuracy error | +/- 0.1 % of full scale at 77 °F (25 °C)<br />+/- 1 % of full scale | Temperature Drift | +/- 0.02 %FS/°C |
| Repeat accuracy | +/- 0.5 %FS | Non-linearity | +/- 0.01 %FS |
| Cross talk | <= 1 LSB | Type of Cable | Twisted shielded pairs cable |
| Electrical connection | 3 x 1.5 mm² 2 screw terminal blocks pitch 3.81 mm for inputs | Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Insulation | Non-insulated between analogue input and internal logic | Height | 1.6 in (41 mm) |
| Depth | 0.6 in (15 mm) | Width | 1.4 in (35 mm) |
| Net Weight | 0.033 lb(US) (0.015 kg) | Permissible continuous overload | 13 V voltage<br />40 mA current |
| Input impedance | <= 250 Ohm current<br />>= 1 MOhm voltage | Immunity to microbreaks | 10 ms |
Specifications may be subject to change without notice
