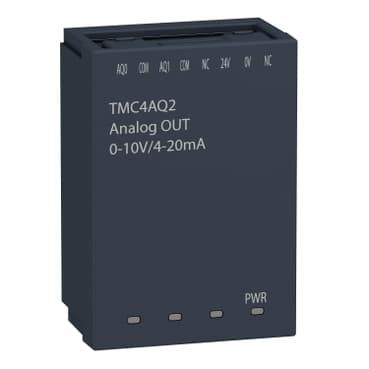

TMC4AQ2
Product ID:34257
Updated: 2026/7/15
Key Features
- 1Deliver precise 16-bit resolution for accurate analog control.
- 2Output versatile 0-10 Vdc and 4-20 mA signals.
- 3Integrate a compact, lightweight 0.055 kg design.
- 4Ensure reliable data with shielded cables under 30 m.
- 5Protect your system with short and open circuit safeguards.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M241 | Product or Component Type | Analogue output cartridge |
| Product Compatibility | Modicon M241C | Analogue output number | 2 |
| Analogue output type | Current 4...20 mA<br />Voltage 0...10 V | Analogue output resolution | 16 bits |
| LSB value | 1 mV 0...10 V voltage<br />2 µA 4...20 mA current | Load type | Resistive |
| Load impedance ohmic | <= 500 Ohm current<br />>= 2 kOhm voltage | Conversion time | 10 ms + 1 controller cycle time |
| Stabilisation time | 10 ms | Absolute accuracy error | +/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.006 %FS/°C | Repeat accuracy | +/- 0.5 %FS |
| Non-linearity | +/- 0.05 %FS | Output ripple | +/- 20 mV |
| Cross talk | 80 dB | Type of Cable | Twisted shielded pairs cable |
| Electrical connection | 1 x 1.5 mm² 1 spring terminal block pitch 3.5 mm for outputs and supply | Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Insulation | Between output and internal logic 500 V DC<br />Non-insulated between outputs | Supply voltage limits | 20.4…28.8 V |
| Local signalling | for PWR 1 LED (green) | Height | 2.0 in (50 mm) |
| Depth | 0.8 in (21 mm) | Width | 1.3 in (34 mm) |
| Net Weight | 0.121 lb(US) (0.055 kg) | Immunity to microbreaks | 10 ms |
