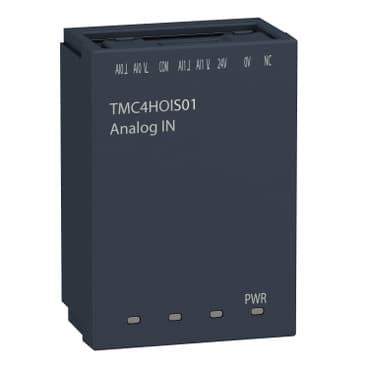

TMC4HOIS01
Product ID:34258
Updated: 2026/7/15
Key Features
- 1Achieve high accuracy with ±0.2% full-scale precision.
- 2Support versatile voltage and current input types.
- 3Integrate easily with a compact, space-saving design.
- 4Ensure reliable data with robust, shielded cable connectivity.
- 5Enhance safety via 500 V DC isolation for harsh environments.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M241 | Product or Component Type | Analogue input cartridge |
| Product Specific Application | Hoisting applications | Product Compatibility | Modicon M241C |
| Analogue input number | 2 | Analogue input type | current 4...20 mA<br /> current 0...20 mA<br /> voltage 0...10 V |
| Analogue input resolution | 16 bits | LSB value | 1 mV voltage 0...10 V<br />2 µA current 0...20 mA<br />2 µA current 4...20 mA |
| Sampling duration | 10 ms | Absolute accuracy error | +/- 0.2 % of full scale at 77 °F (25 °C) |
| Temperature Drift | +/- 0.006 %FS/°C | Repeat accuracy | +/- 0.2 %FS |
| Non-linearity | +/- 0.05 %FS | Cross talk | 80 dB |
| Type of Cable | Twisted shielded pairs cable | Electrical connection | 1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for inputs and supply |
| Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input | Insulation | Between input and internal logic 500 V DC<br />Non-insulated between inputs |
| Supply voltage limits | 20.4…28.8 V | Local signalling | for PWR 1 LED (green) |
| Height | 2.0 in (50 mm) | Depth | 0.8 in (21 mm) |
| Width | 1.3 in (34 mm) | Net Weight | 0.121 lb(US) (0.055 kg) |
| Permissible continuous overload | 40 mA current<br />30 V voltage | Input impedance | <= 250 Ohm current<br />>= 1 MOhm voltage |
| Immunity to microbreaks | 10 ms |
Specifications may be subject to change without notice
