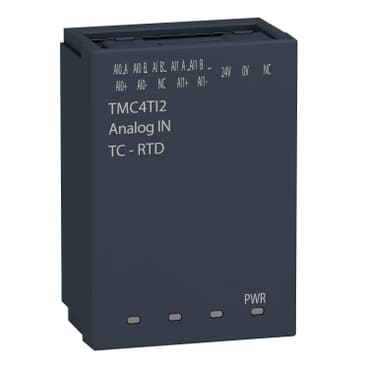

TMC4TI2
Product ID:34260
Updated: 2026/4/4
Key Features
- 1Achieve precise temperature measurements with 14-bit high-resolution analog input. 2、Ensure versatile application compatibility with a 20.4-28.8 VAC wide voltage range. 3、Enable real-time data processing via a fast 100 ms sampling duration. 4、Simplify electrical connections using spring terminal blocks for easy installation. 5、Enhance performance by integrating with the Modicon M241 Micro PLC.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M241 | Product or Component Type | Analogue input cartridge |
| Product Compatibility | Modicon M241C | Analogue input number | 2 |
| Analogue input type | thermocouple - 200...1000 °C thermocouple J<br /> thermocouple - 200...1300 °C thermocouple K<br /> thermocouple 0...1760 °C thermocouple R<br /> thermocouple 0...1760 °C thermocouple S<br /> thermocouple 0...1820 °C thermocouple B<br /> thermocouple - 200...400 °C thermocouple T<br /> thermocouple - 200...1300 °C thermocouple N<br /> thermocouple - 200...800 °C thermocouple E<br />Ni 100/Ni 1000 temperature probe - 60...180 °C<br />Pt 100 temperature probe - 200...850 °C<br />Pt 1000 temperature probe - 200...600 °C | Analogue input resolution | 14 bits |
| LSB value | 0.1 °C | Sampling duration | 100 ms |
| Absolute accuracy error | +/- 0.5 % of full scale at 77 °F (25 °C) for Pt 100/Pt 1000, Ni 100/ Ni 1000 temperature probe<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple K - 200...1300 °C<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple J - 200...1000 °C<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple E - 200...800 °C<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple T - 200...400 °C<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple N - 200...1300 °C<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple B 250...400 °C<br />+/- 0.1 % of full scale at 77 °F (25 °C) for thermocouple B 400...1280 °C<br />+/- 0.2 % of full scale at 77 °F (25 °C) for thermocouple R, S 0...1760°C | Temperature Drift | +/- 0.008 %FS/°C |
| Repeat accuracy | +/- 0.1 %FS | Non-linearity | +/- 0.05 %FS |
| Cross talk | 80 dB | Type of Cable | Twisted shielded pairs cable |
| Electrical connection | 1 x 1.5 mm² 1 spring terminal block pitch 3.81 mm for outputs and supply | Maximum cable distance between devices | Twisted shielded pairs cable <98.4 ft (30 m) input |
| Insulation | Between input and internal logic 500 V DC<br />Non-insulated between inputs | Supply voltage limits | 20.4…28.8 V |
| Local signalling | for PWR 1 LED (green) | Height | 2.0 in (50 mm) |
| Depth | 0.8 in (21 mm) | Width | 1.3 in (34 mm) |
| Net Weight | 0.121 lb(US) (0.055 kg) | Permissible continuous overload | 6 V |
| Input impedance | >= 1 MOhm | Immunity to microbreaks | 10 ms |
