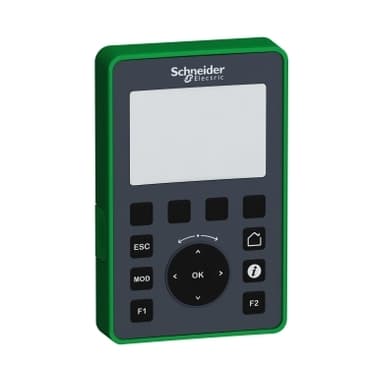

TMH2GDB
Product ID:34261
Updated: 2026/4/4
Key Features
- 1Fit into tight spaces with compact 63x80x126 mm dimensions. 2、Display clear feedback on a 240x160 monochrome STN LCD screen. 3、Protect against harsh conditions with a robust IP65 enclosure. 4、Navigate easily using 4 configurable keys and 6 navigation keys. 5、Operate reliably across a wide -15°C to 50°C temperature range.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon M221 | Product or Component Type | Graphic display |
| Range Compatibility | Modicon M221 | Current consumption | 40 mA 5 V DC via RJ45 connector |
| Power Consumption in W | 1 W | Display Type | Backlit colour STN LCD |
| Display colour | Monochrome | Display Resolution | 240 x 160 pixels |
| Number of key | 4 configurable<br />6 for navigation | Standards | IEC 61131-2<br />IEC 61010-2-201 |
| Product Certifications | cULus | marking | CE |
| Mounting location | Front cabinet 0.9 in (22 mm) hole<br />Bottom of cabinet 0.9 in (22 mm) hole mounting accessory | Connector type | RJ45 communication and power supply |
| Height | 5.0 in (126 mm) | Width | 3.1 in (80 mm) |
| Depth | 2.5 in (63 mm) | Net Weight | 0.37 lb(US) (0.17 kg) |
| Ambient Air Temperature for Operation | 5…122 °F (-15…50 °C) | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Storage altitude | 0.0000000000…6561.7 ft (0…2000 m) | Environmental characteristic | Corrosive gas free |
| Relative humidity | 95 %, non-condensing transport)<br />95 %, non-condensing storage)<br />95 %, non-condensing operation) | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
| IP degree of protection | IP65 front face: <br />IP20 back part: | Pollution degree | 2 IEC 60664-1 |
| Vibration resistance | 1.5 mm 3…150 Hz)<br />2 gn | Shock resistance | 15 gn 11 ms |
| Electromagnetic compatibility | Electrostatic discharge - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 4 kV (contact discharge) conforming to IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m (80 MHz...1 GHz) conforming to IEC 61000-4-3<br />Radiated radio-frequency electromagnetic field immunity test - test level: 3 V/m (1.4...2 GHz) conforming to IEC 61000-4-3<br />Radiated radio-frequency electromagnetic field immunity test - test level: 1 V/m (2...3 GHz) conforming to IEC 61000-4-3<br />Magnetic field at power frequency - test level: 30 A/m (50/60 Hz) conforming to IEC 61000-4-8<br />Electrical fast transient/burst immunity test - test level: 1 kV conforming to IEC 61000-4-4<br />Surge immunity test - test level: 0.5 kV (common mode) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 0.5 kV (differential mode) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 Vrms (0.15...80 MHz) conforming to IEC 61000-4-6<br />Disturbing field emission - test level: 10...150 kHz (power lines (DC)) conforming to IEC 55011<br />Disturbing field emission - test level: 120...69 dBµV/m QP (power lines (DC)) conforming to IEC 55011<br />Disturbing field emission - test level: 150...1500 kHz (power lines (DC)) conforming to IEC 55011<br />Disturbing field emission - test level: 1.5...30 kHz (power lines (DC)) conforming to IEC 55011<br />Disturbing field emission - test level: 30...230 MHz class A (10 m) conforming to IEC 55011<br />Disturbing field emission - test level: 230 MHz...1 GHZ class A (10 m) conforming to IEC 55011<br />Disturbing field emission - test level: 79...63 dBμV/m QP (power lines (DC)) conforming to IEC 55011<br />Disturbing field emission - test level: 63 dBμV/m QP (power lines (DC)) conforming to IEC 55011<br />Disturbing field emission - test level: 40 dBμV/m QP class A (10 m) conforming to IEC 55011<br />Disturbing field emission - test level: 47 dBμV/m QP class A (10 m) conforming to IEC 55011 |
Specifications may be subject to change without notice
