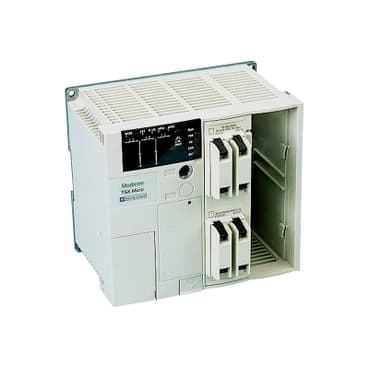

TSX3710128DR1
Product ID:34388
Updated: 2026/4/4
Key Features
- 1Expand system capacity with 2 modular slots for customization. 2、Ensure reliable operation backed by a 2-year warranty. 3、Connect seamlessly via 1 Uni-Telway and 1 Modbus RTU serial link. 4、Handle complex logic using 14K RAM and 15K Flash memory. 5、Execute Boolean instructions in 3.03 ms for high-speed control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Modular base controller |
| Primary voltage | 24 V 19.2…30 V DC | Input current | 2 mA 60 A |
| Immunity to microbreaks | 10 ms | Number of slots | 2 |
| Module type | Screw terminal discrete I/O | Discrete input number | 16 24 V DC |
| Discrete output number | 12 relay | Integrated connection type | 1 serial link Uni-Telway 19.2 kbit/s<br />1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With | Memory description | Internal RAM 14 Kwords data<br />Flash 15 Kwords data |
| Maximum size of object areas | 256 %Mi<br />128 %KWi constant words<br />1 %MWi internal words | Execution time per instruction | 0.25 µs Boolean without PCMCIA card<br />4.81 µs arithmetic REAL floating without PCMCIA card |
| Execution time for 1 Kinstruction | 3.03 100 % Boolean without PCMCIA card<br />0.25 65 % Boolean and 35 % numerical without PCMCIA card | Application structure | 1 fast task<br />8 event tasks<br />1 master task |
| System overhead | 1.9 ms master task | Protection Type | Short-circuit<br />Overload protection |
| Total useful secondary power | 16 W | Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3<br />Electromagnetic field immunity test IEC 1000-4-3 level 3<br />Resistance to fast transient IEC 1000-4-4 level 3<br />Immunity to impulse waves IEC 1000-4-5<br />Damped oscillatory wave IEC 1000-4-12<br />Immunity to electromagnetic interference IEC 61131-2 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for operation | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Width | 11.1 in (282.7 mm) | Height | 5.9 in (151 mm) |
| Depth | 6.0 in (152 mm) | Net Weight | 4.2 lb(US) (1.9 kg) |
