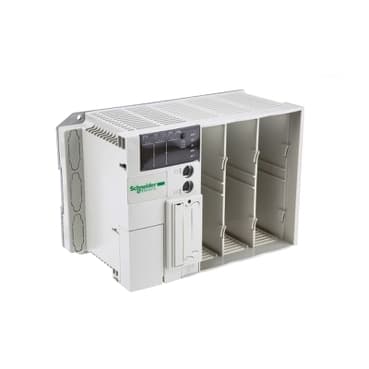

TSX3721101
Product ID:34393
Updated: 2026/7/15
Key Features
- 1Ensure reliable performance for material handling and packaging machines with a 2-year warranty.
- 2Configure advanced automation with TSX Micro 37 21/22 PLC and 31 inputs.
- 3Achieve efficient data exchange via a 19.2 kbps high-speed transfer rate.
- 4Store extensive operational data with 20K words of internal RAM and 15K flash.
- 5Integrate easily into panels using a compact design weighing just 1.7 Kg.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Modular base controller |
| Primary voltage | 24 V 19.2…30 V DC | Input current | 2 mA 60 A |
| Immunity to microbreaks | 10 ms | Number of slots | 3 |
| Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s<br />1 Modbus Modbus RTU 19.2 kbit/s | Realtime clock | With |
| Memory description | Flash 15 Kwords data<br />Internal RAM 20 Kwords data<br />Internal RAM (with PCMCIA card) 128 Kwords program and data<br />Internal RAM 128 Kwords data storage | Maximum size of object areas | 128 %KWi constant words<br />1 %MWi internal words<br />256 %Mi |
| Execution time per instruction | 0.13 µs Boolean without PCMCIA card<br />4.5 µs arithmetic REAL floating without PCMCIA card<br />0.19 µs Boolean with PCMCIA card<br />4.5 µs arithmetic REAL floating with PCMCIA card | Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card<br />0.27 65 % Boolean and 35 % numerical without PCMCIA card<br />4 100 % Boolean with PCMCIA card<br />0.266 65 % Boolean and 35 % numerical with PCMCIA card |
| Application structure | 1 fast task<br />16 event tasks<br />1 master task | System overhead | 1.6 ms master task |
| Protection Type | Short-circuit<br />Overload protection | Total useful secondary power | 16 W |
| Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3<br />Electromagnetic field immunity test IEC 1000-4-3 level 3<br />Resistance to fast transient IEC 1000-4-4 level 3<br />Immunity to impulse waves IEC 1000-4-5<br />Damped oscillatory wave IEC 1000-4-12<br />Immunity to electromagnetic interference IEC 61131-2 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation for operation |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Width | 13.4 in (341.4 mm) |
| Height | 5.9 in (151 mm) | Depth | 6.0 in (152 mm) |
| Net Weight | 3.79 lb(US) (1.72 kg) |
