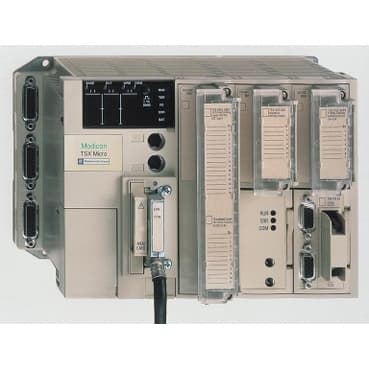

TSX3722101
Product ID:34395
Updated: 2026/4/4
Key Features
- 1Resist electrostatic discharge and electromagnetic interference. 2、Integrate seamlessly into existing systems for scalability. 3、Support Uni-Telway and Modbus RTU protocols at 19.2 kbit/s. 4、Operate on a wide 24V DC range from 19.2 to 30V. 5、Execute fast, master, and 16 event tasks with 2.3 ms overhead.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Modular base controller |
| Primary voltage | 24 V 19.2…30 V DC | Input current | 2 mA 60 A |
| Immunity to microbreaks | 10 ms | Number of slots | 3 |
| Analogue input type | 0...10 V 8 | Analogue output type | 0...10 V 1 |
| Counting input type | Discrete incremental counter 1 10 Hz<br />Incremental 1 10 Hz | Integrated connection type | 1 serial link (TER/AUX) Uni-Telway 19.2 kbit/s<br />1 Modbus Modbus RTU 19.2 kbit/s |
| Realtime clock | With | Memory description | Flash 15 Kwords data<br />Internal RAM 20 Kwords data<br />Internal RAM (with PCMCIA card) 128 Kwords program and data<br />Internal RAM 128 Kwords data storage |
| Maximum size of object areas | 1 %MWi internal words<br />128 %KWi constant words<br />256 %Mi | Execution time per instruction | 0.13 µs Boolean without PCMCIA card<br />4.5 µs arithmetic REAL floating without PCMCIA card<br />0.19 µs Boolean with PCMCIA card<br />4.5 µs arithmetic REAL floating with PCMCIA card |
| Execution time for 1 Kinstruction | 5.88 100 % Boolean without PCMCIA card<br />4 100 % Boolean with PCMCIA card<br />0.266 65 % Boolean and 35 % numerical with PCMCIA card | Application structure | 1 master task<br />16 event tasks<br />1 fast task |
| System overhead | 2.3 ms master task | Protection Type | Short-circuit<br />Overload protection |
| Total useful secondary power | 16 W | Electromagnetic compatibility | Electrostatic discharge IEC 1000-4-2 level 3<br />Electromagnetic field immunity test IEC 1000-4-3 level 3<br />Resistance to fast transient IEC 1000-4-4 level 3<br />Immunity to impulse waves IEC 1000-4-5<br />Damped oscillatory wave IEC 1000-4-12<br />Immunity to electromagnetic interference IEC 61131-2 |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for operation | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Width | 13.4 in (341.4 mm) | Height | 5.9 in (151 mm) |
| Depth | 6.0 in (152 mm) | Net Weight | 3.86 lb(US) (1.75 kg) |
Specifications may be subject to change without notice
