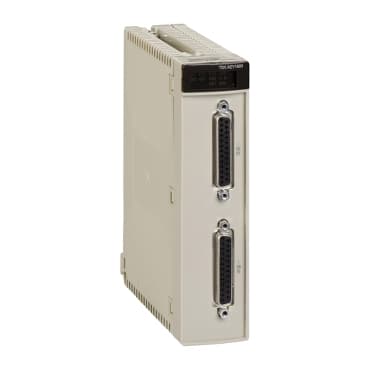

TSXAEY1600
Product ID:34397
Updated: 2026/7/15
Key Features
- 1Support 16 analog input channels for versatile current and voltage signals.
- 2Ensure accurate 12-bit analog-to-digital conversions for reliable data.
- 3Provide 1000 Vrms isolation between channels and bus for safety.
- 4Offer fast read cycle times as low as 3 ms per channel.
- 5Operate with low 270 mA current consumption for energy efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Analog input module |
| Input level | High level | Analogue input number | 16 |
| Analogue input type | Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V<br />Voltage 0...10 V<br />Voltage 0...5 V<br />Voltage 1...5 V | Analog/digital conversion | 12 bits |
| Nominal read cycle time | 51 ms | Fast read cycle time | 3 ms + 3 ms x number of channels used |
| Measurement error | 0.1 % of full scale +/- 10 V 25 °C<br />0.1 % of full scale 0...10 V 25 °C<br />0.1 % of full scale 0...5 V 25 °C<br />0.1 % of full scale 1...5 V 25 °C<br />0.13 % of full scale +/- 10 V 0...60 °C<br />0.13 % of full scale 0...10 V 0...60 °C<br />0.13 % of full scale 0...5 V 0...60 °C<br />0.13 % of full scale 1...5 V 0...60 °C<br />0.16 % of full scale 0...20 mA 25 °C<br />0.16 % of full scale 4...20 mA 25 °C<br />0.32 % of full scale 0...20 mA 0...60 °C<br />0.32 % of full scale 4...20 mA 0...60 °C | Isolation between channels and bus | 1000 Vrms |
| Isolation between channels and ground | 1000 Vrms | Isolation between channels | Common point |
| Common mode between channels | None | Input overvoltage protection | -15…15 V at state 0 250 kOhm<br />-30…30 V at state 1 250 kOhm |
| Electrical connection | 2 connectors SUB-D 25 | Overcurrent | -30…30 mA at state 1 250 kOhm |
| marking | CE | Current consumption | 270 mA 5 V DC |
| Module format | Standard | Net Weight | 0.75 lb(US) (0.34 kg) |
| Standards | IEC 1131 | Product Certifications | BV<br />GL<br />LR<br />DNV<br />RINA<br />ABS<br />RMRS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Specifications may be subject to change without notice
