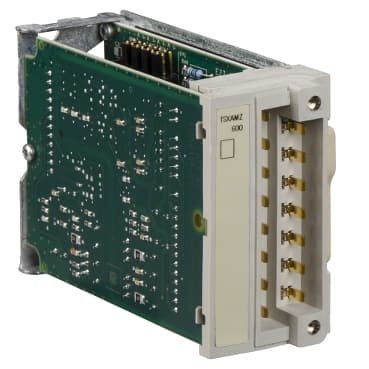

TSXAMZ600
Product ID:34412
Updated: 2026/7/15
Key Features
- 1Deliver high-level analog I/O with 4 input and 2 output channels.
- 2Achieve precise signal processing via 11-bit analog/digital conversion.
- 3Integrate seamlessly with Modicon TSX Micro automation platforms.
- 4Protect robustly against short circuits and temperature drift.
- 5Conserve energy with a design using only 180 mA at 5VDC.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Analogue I/O module |
| Number of channels | 4 input module<br />2 output module | Analogue Input Type | 4...20 mA<br />0...20 mA<br />+/- 10 V<br />0...10 V |
| Analogue Output Type | 4...20 mA<br />0...20 mA<br />0...10 V<br />+/- 10 V | Analog/digital conversion | 11 bits 0...10 V 0...10 V<br />11 bits 0...20 mA or 4...20 mA 0...20 mA or 4...20 mA<br />11 bits + sign +/- 10 V +/- 10 V |
| Measurement resolution | 0...20 mA or 4...20 mA<br /> 0...10 V or +/- 10 V | Acquisition period | 16 ms 0...20 mA or 4...20 mA<br />16 ms 0...10 V or +/- 10 V |
| Response time | 400 µs +/- 10 V or 0...10 V<br />400 µs 0...20 mA or 4...20 mA<br />400 µs +/- 10 V | Output load | <= 0.6 Ohm 0...20 mA or 4...20 mA<br />>= 2 Ohm +/- 10 V or 0...10 V |
| Protection type | Short-circuit +/- 10 V or 0...10 V<br />Short-circuit 0...20 mA or 4...20 mA | Temperature drift | 0.107 %/10 °C 0...20 mA or 4...20 mA<br />0.054 %/10 °C 0...20 mA or 4...20 mA<br />0.083 %/10 °C +/- 10 V or 0...10 V<br />0.068 %/10 °C 0...10 V or +/- 10 V |
| Input impedance | 250 Ohm 0...20 mA or 4...20 mA<br />2.2 Ohm 0...10 V or +/- 10 V | current consumption | 180 mA |
| Isolation voltage | 1000 V AC | Net Weight | 0.53 lb(US) (0.24 kg) |
