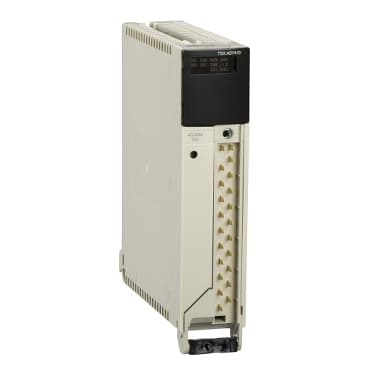

TSXASY410
Product ID:34413
Updated: 2026/4/4
Key Features
- 1Deliver precise analog control with 11-bit conversion and 2.5 ms speed. 2、Support multiple signal ranges including 0-20 mA and +/-10 V. 3、Ensure robust operation with 1500 Vrms channel isolation. 4、Provide secure connectivity via screw terminal blocks. 5、Minimize system load with efficient 900 mA power draw.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Analog output module |
| Analogue output number | 4 | Analogue output type | Current 0...20 mA<br />Current 4...20 mA<br />Voltage +/- 10 V |
| Analog/digital conversion | 11 bits + sign | Conversion time | 2.5 ms |
| Measurement resolution | 10.25 µA 0...20 mA<br />10.25 µA 4...20 mA<br />5.12 mV +/- 10 V | Electrical Connection | Screw terminal block |
| Measurement error | 0.45 % of full scale +/- 10 V 25 °C<br />0.52 % of full scale 0...20 mA 25 °C<br />0.52 % of full scale 4...20 mA 25 °C<br />0.75 % of full scale +/- 10 V 0...60 °C<br />0.98 % of full scale 0...20 mA 0...60 °C<br />0.98 % of full scale 4...20 mA 0...60 °C | Isolation between channels | 1500 Vrms |
| Isolation between channels and bus | 1500 Vrms | Isolation between channels and ground | 500 V |
| Protection Type | Overload protection<br />Short-circuit protection | Output voltage limits | <= 30 V |
| Load impedance ohmic | < 600 Ohm 0...20 mA<br />< 600 Ohm 4...20 mA<br />> 1000 Ohm +/- 10 V | Maximum load inductance | 300 µH |
| Maximum load capacitance | 0.1 µF | marking | CE |
| Current consumption | 900 mA 5 V DC | Module format | Standard |
| Terminals description PLC n°1 | (14)OUT_ANA_SHIELD#<br />(19)OUT_ANA_SHIELD#<br />(18)OUT_ANA_CUR#3<br />(1)OUT_ANA_VOLT#0<br />(5)OUT_ANA_SHIELD#<br />(16)OUT_ANA_VOLT#3<br />(15)OUT_ANA_SHIELD#<br />(11)OUT_ANA_VOLT#2<br />(12)OUT_ANA_COM#2<br />(20)OUT_ANA_SHIELD#<br />(6)OUT_ANA_VOLT#1<br />(7)OUT_ANA_COM#1<br />(2)OUT_ANA_COM#0<br />(13)OUT_ANA_CUR#2<br />(4)OUT_ANA_SHIELD#<br />(8)OUT_ANA_CUR#1<br />(9)OUT_ANA_SHIELD#<br />(3)OUT_ANA_CUR#0<br />(17)OUT_ANA_COM#3<br />(10)OUT_ANA_SHIELD# | Net Weight | 0.77 lb(US) (0.35 kg) |
| Standards | CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 142<br />92/31/EEC<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group A<br />93/68/EEC<br />IEC 61131-2<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D<br />UL 508 | Product Certifications | GL<br />ABS<br />RINA<br />DNV<br />RMRS<br />LR<br />BV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Specifications may be subject to change without notice
