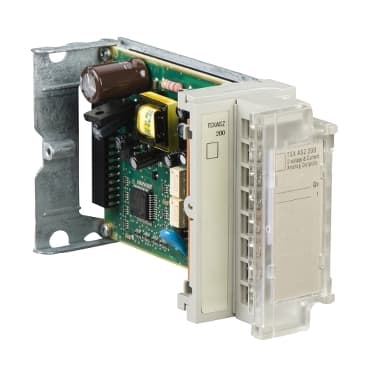

TSXASZ200
Product ID:34417
Updated: 2026/7/15
Key Features
- 1Deliver precise control with 2-channel analog output and 11-bit conversion.
- 2Consume only 150mA at 5VDC for efficient power usage.
- 3Integrate seamlessly with Modicon TSX Micro control systems.
- 4Receive reliable protection with a standard 2-year manufacturer warranty.
- 5Ensure environmental compliance with China RoHS regulation adherence.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Analog output module |
| Number of channels | 2 | Analogue Output Type | 0...20 mA or 4...20 mA<br />+/- 10 V |
| Analog/digital conversion | 11 bits + sign 0...20 mA or 4...20 mA<br />11 bits +/- 10 V | Measurement resolution | 0...20 mA or 4...20 mA<br />+/- 10 V |
| Output load | <= 0.6 Ohm 0...20 mA or 4...20 mA<br />>= 1 Ohm +/- 10 V | Protection type | Open-circuit 0...20 mA or 4...20 mA |
| Temperature drift | 0.107 %/10 °C 0...20 mA or 4...20 mA<br />0.083 %/10 °C +/- 10 V | current consumption | 150 mA |
| Isolation voltage | 1500 V AC | Net Weight | 0.4 lb(US) (0.2 kg) |
Specifications may be subject to change without notice
