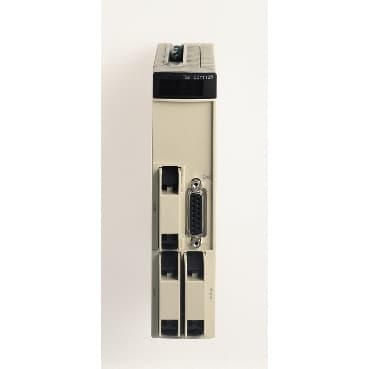

TSXCCY1128C
Product ID:34474
Updated: 2026/4/3
Key Features
- 1Deliver high-precision automation with 128 programmable cams. 2、Reduce energy costs with efficient 7W power dissipation. 3、Connect flexibly to incremental and absolute SSI encoders. 4、Enhance functionality with parts counting and backlash elimination. 5、Ensure reliable performance in standard industrial environments.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Electronic cam module |
| Number of cams | 128 | Number of tracks | 32 |
| Function of module | Elimination of axis backflash<br />Switching feedforward<br />Measurement capture<br />Position, monostable, brake<br />Generation of events<br />Position recalibration<br />Parts counter | I/O modularity | 1 axis |
| Electrical circuit type | Auxiliary input positive EN/IEC 61131 type 1<br />Incremental encoder with 10...30 V positive or negative<br />Incremental encoder with RS422 differential | Clock frequency | 200 kHz SSI absolute encoder |
| Incremental encoder frequency x1 | 500 kHz | Incremental encoder frequency x 4 | 250 kHz |
| Power dissipation in W | 7 W | Maximum output refresh cycle | 100 µs 32<br />200 µs 128<br />50 µs 16 |
| Input compatibility | Absolute encoder parallel output ABE7CPA11<br />Absolute encoder SSI serial output<br />Incremental encoder 10...30 V totem pole<br />Incremental encoder 5 V DC RS422/485 line emitter | Input voltage | 24 V encoder with 10...30 V<br />24 V auxiliary input |
| Input current | 10 mA RS422<br />15.5 mA encoder with 10...30 V<br />8 mA auxiliary input | Input voltage limits | <= 5.5 V RS422<br />19...30 V encoder with 10...30 V<br />19...30 V auxiliary input |
| Voltage state 1 guaranteed | <= 11 V encoder with 10...30 V<br />> 3 V RS422<br /><= 11 V auxiliary input | Current state 1 guaranteed | >= 5 mA encoder with 10...30 V)<br />>= 5.8 mA RS422)<br />>= 3 mA auxiliary input) |
| Voltage state 0 guaranteed | < 5 V encoder with 10...30 V<br /><= -3 V RS422<br />< 5 V auxiliary input | Current state 0 guaranteed | <= 2 mA encoder with 10...30 V)<br /><= -5.8 mA RS422)<br /><= 1.5 mA auxiliary input) |
| Response time | < 100 µs auxiliary input | Input impedance | Encoder with 10...30 V 1500 Ohm for nominal U<br />Auxiliary input 3000 Ohm for nominal U |
| Output type | Track output EN/IEC 61131-2 | Output voltage | 24 V DC |
| Nominal output current | 0.5 A | Rated current | <= 12 A per module<br /><= 6 A per connector<br /><= 0.6 A per output |
| Output voltage limits | 19...30 V | Output compatibility | Positive logic DC inputs (resistance <= 15 kOhm) |
| Maximum tungsten load | 10 W | Switching frequency | < 0.6/LI² inductive |
| Preactuator voltage detection threshold | < 14 V fault state<br />> 18 V OK state | Output overload protection | Current limiter<br />Thermal circuit breaker |
| Output short-circuit protection | Thermal circuit breaker<br />Current limiter | Output overvoltage protection | Zener diode |
| Reverse polarity protection | Reverse diode on power supply | Checks | Monitoring peactuator power supply |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red) | Electrical connection | 1 connector HE-10 20 pins for connecting the auxiliary inputs and the encoder power supply<br />1 connector HE-10 20 pins for connecting the track outputs on group 0 and 1<br />1 connector HE-10 20 pins for connecting the track outputs on group 2 and 3<br />1 connector SUB-D 15 for connecting incremental or absolute encoder |
| Current consumption | 660 mA 5 V DC<br />15 mA 24 V DC | Module format | Standard |
| Net Weight | 1.06 lb(US) (0.48 kg) | Electromagnetic discharge time | < L/R s |
| Protective treatment | Conformal coating Humiseal 1A33<br />TC | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) |
Specifications may be subject to change without notice
