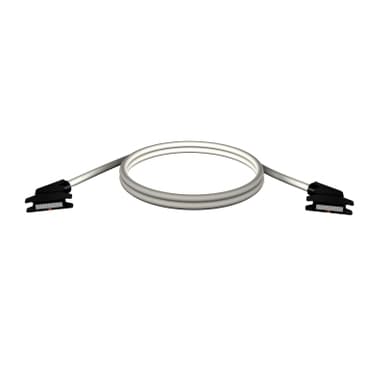

TSXCDP202
Product ID:34480
Updated: 2026/7/15
Key Features
- 1Integrate easily with a compact and modular design.
- 2Ensure secure connections with HE10 connector compatibility.
- 3Supply power for encoders (5 V/10-30 V DC) and auxiliary inputs (24 V DC).
- 4Rely on durable performance with AWG 28 wire construction.
- 5Seamlessly connect within the Modicon Premium Automation platform.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Accessory / separate part designation | Rolled ribbon connecting cable |
| accessory / separate part type | Connecting cable | accessory / separate part category | Connection accessories |
| Accessory / separate part destination | I/O module fitted with HE10 connectors<br />Telefast 2 sub-base | Product Specific Application | Encoder supply 5 V/10...30 V DC<br />Auxiliary inputs supply 24 V DC |
| Product Compatibility | TSXCTY2C<br />ABE7H08R10<br />ABE7H16R20 | Cable length | 6.6 ft (2 m) |
| Electrical connection | 2 connectors HE10, 20 ways | Wire section | 0.0001 in² (0.08 mm²) |
| AWG Gauge | AWG 28 | Current per channel | 0.1 A |
| Net Weight | 0.37 lb(US) (0.17 kg) |
Specifications may be subject to change without notice
