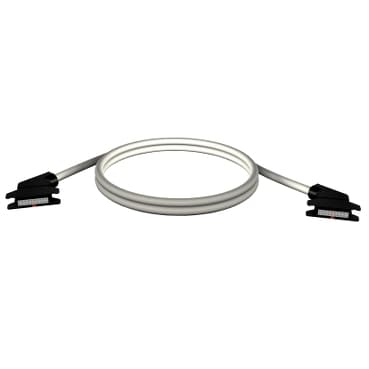

TSXCDP203
Product ID:34481
Updated: 2026/7/15
Key Features
- 1Reduce cycle times and optimize production data integration.
- 2Secure reliable connections with high-density HE10 connectors.
- 3Fit extended architectures using the compact and efficient design.
- 4Connect seamlessly across various Modicon Premium modules and systems.
- 5Support sustainability with recycled and recyclable materials.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium | Accessory / separate part designation | Connecting cable |
| accessory / separate part type | Connecting cable | accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Sub-base ABE7H16R20 | Product Compatibility | TSXCFY11<br />TSXCAY<br />TSXCFY21<br />TSXCTY2C<br />TSXCTY4A<br />TSXCTY2A<br />TSXCCY1128 |
| Cable length | 6.6 ft (2 m) | Electrical connection | 1 connector HE10, 20 ways module side<br />1 connector HE10, 20 ways PLC side |
| Wire section | 0.0005 in² (0.324 mm²) | AWG Gauge | AWG 22 |
| Net Weight | 0.62 lb(US) (0.28 kg) |
Specifications may be subject to change without notice
