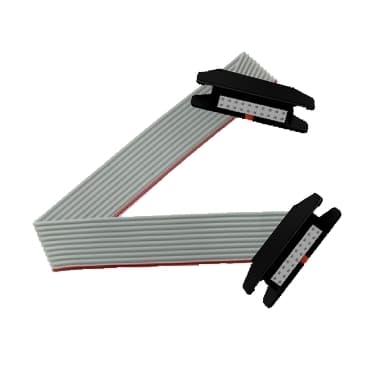

TSXCDP302
Product ID:34483
Updated: 2026/7/15
Key Features
- 1Ensure secure connections for I/O modules with HE10 connectors.
- 2Provide 3-meter reach for flexible automation setup layouts.
- 3Gain peace of mind with a comprehensive 2-year manufacturer warranty.
- 4Meet RoHS standards for environmental compliance and sustainability.
- 5Support auxiliary and encoder power supplies for versatile application.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Accessory / separate part designation | Rolled ribbon connecting cable |
| accessory / separate part type | Connecting cable | accessory / separate part category | Connection accessories |
| Accessory / separate part destination | Telefast 2 sub-base<br />I/O module fitted with HE10 connectors | Product Specific Application | Encoder supply 5 V/10...30 V DC<br />Auxiliary inputs supply 24 V DC |
| Product Compatibility | ABE7H08R10<br />TSXCTY2C<br />ABE7H16R20 | Cable length | 9.8 ft (3 m) |
| Electrical connection | 2 connectors HE10, 20 ways | Wire section | 0.0001 in² (0.08 mm²) |
| AWG Gauge | AWG 28 | Current per channel | 0.1 A |
| Net Weight | 0.55 lb(US) (0.25 kg) |
Specifications may be subject to change without notice
