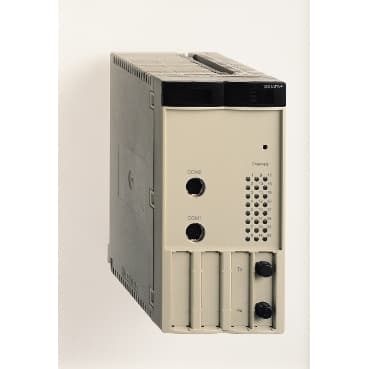

TSXCSY84
Product ID:34501
Updated: 2026/7/15
Key Features
- 1Support four imaginary, four remote, and eight real axes.
- 2Operate on the SERCOS 2 network at 4 Mbit/s.
- 3Conform to EN 61491 standards for robust performance.
- 4Transmit data up to 150 meters via fiber optics.
- 5Consume only 9 watts for energy efficiency.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Multi axis control module |
| Product Specific Application | SERCOS digital servo drives | Number of Channels | 32 |
| Number of axis | 4 imaginary<br />4 remote<br />8 real | Path function | Following of auxiliary axes<br />Simple linear path |
| Communication Network Type | SERCOS 2 | Structure type | Industrial EN 61491 |
| Set of axes | 4 followers<br />4 coordinated | Cam profile | 7 |
| Topology | Ring | Transmission support medium | Fiber optic cable |
| Transmission Rate | 4 Mbit/s | Cycle time | 2 ms 2<br />2 ms 4<br />4 ms 8 |
| maximum number of segment of SERCOS network | 9 | Maximum optic fiber length | 492.1 ft (150 m) glass<br />124.7 ft (38 m) plastic |
| Maximum length of segment | 328.08 ft (100 m) bus X | Power dissipation in W | 9 W |
| Local signalling | for module operating (RUN) 1 LED (green)<br /> for external fault (I/O) 1 LED (red)<br /> for internal fault, module failure (ERR) 1 LED (red)<br /> for flashing indicates data transmission and reception (SER) 1 LED (yellow)<br /> for flashing module reinitializing (INI) 1 LED (yellow)<br /> for channel diagnostic 24 LEDs (green) | Current consumption | 1800 mA 5 V DC |
| Net Weight | 1.15 lb(US) (0.52 kg) | Standards | EN/IEC 61491 |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative Humidity | 10…95 % without condensation |
