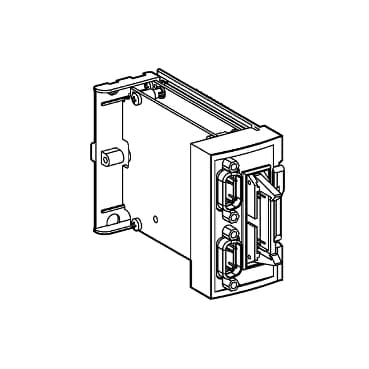

TSXCTZ2AA
Product ID:34313
Updated: 2026/7/15
Key Features
- 1Process events rapidly in just 1.5 milliseconds.
- 2Operate reliably on a stable 2.5 V power supply.
- 3Conserve energy with low 15 mA current draw.
- 4Handle high-speed counting up to 500 Hz frequency.
- 5Ensure durability with a long-life, recyclable design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Counter modules |
| Counting input number | 2 | Counting frequency | 500 Hz |
| Network Frequency | 100 Hz | Input voltage | 5 V DC<br />24 V DC |
| Input current | 18 mA | Efficiency at full load | >= 2.4 V at state 1 5 V DC<br /><= 1.2 V at state 0 5 V DC<br />>= 11 V at state 1 24 V DC<br /><= 5 V at state 0 24 V DC<br />5.5 V 5 V DC<br />19...30 V 24 V DC |
| Current state 0 guaranteed | <= 1 mA 5 V DC<br /><= 2 mA 24 V DC | Current state 1 guaranteed | >= 6 mA 24 V DC<br />>= 3.7 mA 5 V DC |
| Response time | 1.5 ms event processing<br />8 ms master task | Sensor power supply | 2.5 V |
| current consumption | 15 mA | Logic input | Positive |
| Input impedance | 0.27 Ohm 5 V DC at Un<br />1.4 Ohm 24 V DC at Un<br />>= 0.44 Ohm 5 V DC at U = 2.4 V | Response Time | 3 ms |
| Input type | Resistive 24 V DC | Input compatibility | 2-wire/3-wire proximity sensor 24 V DC |
| Net Weight | 0.49 lb(US) (0.22 kg) | Standards | IEC 1131 Type 2 24 V DC |
Specifications may be subject to change without notice
