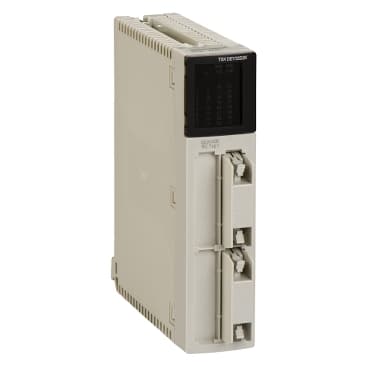

TSXDEY32D2K
Product ID:34341
Updated: 2026/7/15
Key Features
- 1Deliver 32 current sink isolated inputs compliant with EN/IEC 61131-2.
- 2Ensure consistent performance with 24 V DC positive nominal voltage.
- 3Provide quick data acquisition via a 4 ms response time.
- 4Balance performance and energy efficiency with optimized power consumption.
- 5Meet rigorous standards with CE certification for industrial safety.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Discrete input module |
| Discrete input number | 32 current sink isolated EN/IEC 61131-2 type 1 | Discrete input voltage | 24 V DC positive |
| Sensor power supply | 19…30 V | Discrete input current | 3.5 mA |
| Voltage state 1 guaranteed | >= 11 V | Current state 1 guaranteed | >= 3 mA |
| Voltage state 0 guaranteed | <= 5 V | Current state 0 guaranteed | <= 1.5 mA |
| Input impedance | 6300 Ohm at state 1 | Response Time | <= 7 ms<br />4 ms |
| isalotion resistance | < 10 MOhm 500 V DC | Power dissipation | (1 W + 0.1 W x No of channels used) |
| Electrical Connection | HE-10 connector | marking | CE |
| Current consumption | 135 mA 5 V DC<br />160 mA 24 V DC | Module format | Standard |
| Net Weight | 0.7 lb(US) (0.3 kg) | Dielectric strength | 1500 V AC 50/60 Hz |
| Standards | CSA C22.2 No 213 Class I Division 2 Group B<br />IEC 60664<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group A<br />92/31/EEC<br />EN/IEC 61131-2<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group D<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />73/23/EEC<br />89/336/EEC | Product Certifications | LR<br />GL<br />BV<br />RMRS<br />RINA<br />ABS<br />DNV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Specifications may be subject to change without notice
