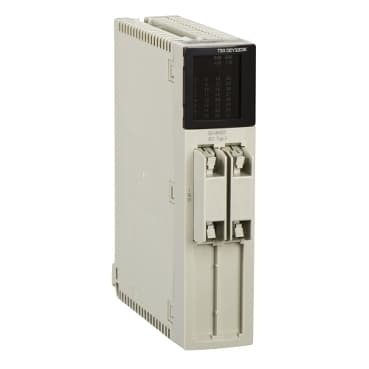

TSXDEY32D3K
Product ID:34503
Updated: 2026/4/3
Key Features
- 1Monitor 32 high-speed discrete inputs precisely. 2、Ensure durability with TC protective treatment. 3、Operate consistently at 48 V DC. 4、Meet safety with <10 MOhm insulation. 5、Simplify integration using HE-10 connectors.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Discrete input module |
| Discrete input number | 32 current sink isolated EN/IEC 61131-2 type 2 | Discrete input voltage | 48 V DC positive |
| Sensor power supply | 38…60 V | Input compatibility | With 2-wire/3-wire proximity sensors EN/IEC 60947-5-2 |
| Discrete input current | 7 mA | Voltage state 1 guaranteed | >= 30 V |
| Current state 1 guaranteed | >= 6.5 mA | Voltage state 0 guaranteed | <= 10 V |
| Current state 0 guaranteed | <= 2 mA | Input impedance | 6300 Ohm at state 1 |
| Response Time | 4 ms<br /><= 7 ms | isalotion resistance | < 10 MOhm 500 V DC |
| Power dissipation | (2 W + 0.1 W x No of channels used) | Electrical Connection | HE-10 connector |
| marking | CE | Current consumption | 140 mA 5 V DC<br />275 mA 24 V DC |
| Module format | Standard | Net Weight | 0.68 lb(US) (0.31 kg) |
| Dielectric strength | 1500 V AC 50/60 Hz | Standards | 73/23/EEC<br />IEC 60664<br />92/31/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group B<br />UL 508<br />93/68/EEC<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 142<br />EN/IEC 61131-2 |
| Product Certifications | GL<br />ABS<br />BV<br />RMRS<br />LR<br />DNV<br />RINA | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
| IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
