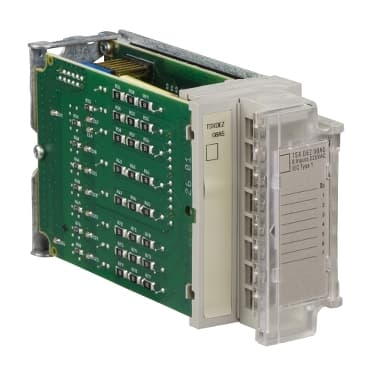

TSXDEZ08A4
Product ID:34507
Updated: 2026/7/15
Key Features
- 1Deliver high-capacity 8A output for demanding systems.
- 2Integrate easily with a compact and space-saving design.
- 3Ensure reliable, low-noise, and high-efficiency operation.
- 4Meet international safety standards including UL and CE.
- 5Provide durable construction for an extended service life.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Discrete input module |
| Discrete input number | 8 screw terminal block | Discrete input voltage | 100...120 V AC<br />85...132 V |
| Discrete input frequency | 47...63 Hz | Discrete input current | 11 mA 50 Hz<br />13 mA 60 Hz |
| Input voltage limits | >= 74 V at state 1<br />< 20 V at state 0 | Current state 0 guaranteed | <= 4 mA |
| Current state 1 guaranteed | >= 6 mA | Response time | 11...18 ms at state 0 to state 1 50 Hz<br />9...16 ms at state 0 to state 1 60 Hz<br />11...24 ms at state 1 to state 0 50 Hz<br />10...22 ms at state 1 to state 0 60 Hz |
| Standards | IEC 1131-2 Type 2 | Input compatibility | 2-wire proximity sensor |
| Discrete input type | Capacitive | Current consumption | 20 mA |
| Power dissipation in W | 1.7 W | Isolation voltage | 1500 V AC 1 s |
| Net Weight | 0.51 lb(US) (0.23 kg) |
Specifications may be subject to change without notice
