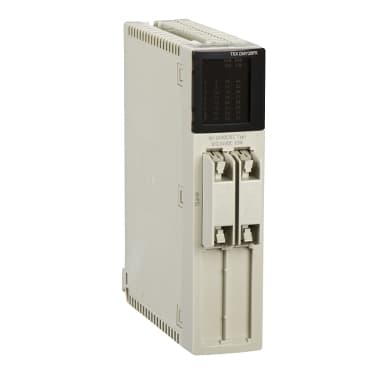

TSXDMY28FK
Product ID:34512
Updated: 2026/7/15
Key Features
- 1Deliver high-performance 28A output for demanding applications.
- 2Integrate easily with a compact and space-saving design.
- 3Ensure reliable operation with robust industrial-grade construction.
- 4Accept a wide input voltage range from 85 to 264 volts.
- 5Meet international safety certifications including UL and CE.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Discrete I/O modules |
| Discrete I/O number | 28 | Discrete input number | 16 current sink fast input IEC 1131-2 Type 1 |
| Input logic | Positive | Input voltage | 24 V 3.5 mA DC |
| Voltage state 1 guaranteed | >= 11 V | Current state 1 guaranteed | >= 3 mA |
| Voltage state 0 guaranteed | <= 5 V | Current state 0 guaranteed | <= 1.5 mA |
| Sensor power supply | 19…30 V | Filter time | 0.1 to 7.5 ms by configuration<br />4 ms by default |
| Paralleling of inputs | Yes | Input compatibility | 2-wire/3-wire proximity sensor |
| Insulation resistance | > 10 MOhm 500 V DC | Power dissipation | 1.2 W + 0.1 x number of input at 1 |
| Discrete output number | 12 | Maximum tungsten load | <6 W solid state output |
| Output voltage | 24 V 0.5 A | Discrete output type | Solid state |
| Output voltage limits | 19...30 V | Maximum output current | 4 A by module<br />0.5 A by channel |
| Maximum leakage current | 1 mA at state 0 | [Ures] residual voltage | 1.2 V at state 1 |
| Minimum load impedance | 48 W | Response time on output | 0.6 ms |
| Switching frequency | 0.5/LI² Hz | Output overvoltage protection | By transil diode |
| Reverse polarity protection | Reversed diode | Preactuator voltage detection threshold | 16 V |
| Electrical connection | 2 connectors HE-10 | Current consumption | 300 mA 5 V DC<br />75 mA 24 V DC |
| Module format | Standard | Net Weight | 0.71 lb(US) (0.32 kg) |
| Dielectric strength | 1500 V 50/60 Hz for 1 minute | Derating factor | 60 % of inputs at state 1 140 °F (60 °C) fast input<br />60 % of the maximum current of the module 140 °F (60 °C) solid state output |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 5…95 % without condensation | Operating altitude | <= 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
