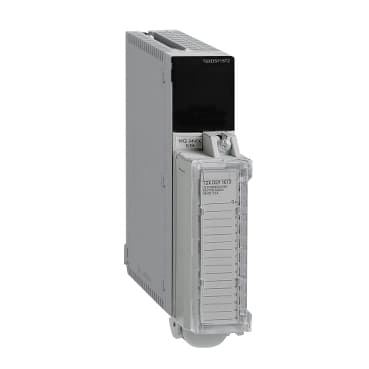

TSXDSY16T2C
Product ID:34541
Updated: 2026/7/15
Key Features
- 1Deliver high-power 16A output for demanding applications.
- 2Save space with a compact and efficient design.
- 3Ensure flexibility via a wide input voltage range.
- 4Reduce energy consumption through high operational efficiency.
- 5Guarantee durability with robust, long-lasting construction.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Discrete output module |
| Discrete output number | 16 | Discrete output type | Solid state protected |
| Discrete output voltage | 24 V DC positive EN/IEC 61131-2 19...30 V | Discrete output current | 500 mA |
| Current per channel | 0.625 A | Maximum current per module | 7 A |
| Maximum leakage current | 0.5 mA at state 0 | [Ures] residual voltage | 1.2 V |
| Response time | 1.2 ms | Switching frequency | 0.5/LI² Hz |
| Output overvoltage protection | By transil diode | Reverse polarity protection | Reverse mounted diode |
| Output overload protection | Electronic tripping on reactivation | Short-circuit protection | Electronic tripping on reactivation |
| Preactuator voltage detection threshold | 16 V | Minimum load impedance | 48 W |
| isalotion resistance | > 10 MOhm 500 V | Power dissipation | (1.1 W + 0.75 W x No of outputs x current per module) |
| marking | CE | Electrical connection | Screw terminal block |
| Current consumption | 80 mA 5 V DC | Module format | Standard |
| Net Weight | 0.75 lb(US) (0.34 kg) | Dielectric strength | 1500 V 50/60 Hz 60 s |
| Standards | 92/31/EEC<br />89/336/EEC<br />93/68/EEC<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group D<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group C | Product Certifications | RMRS<br />BV<br />ABS<br />LR<br />RINA<br />GL<br />DNV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | Conformal coating Humiseal 1A33<br />TC | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
