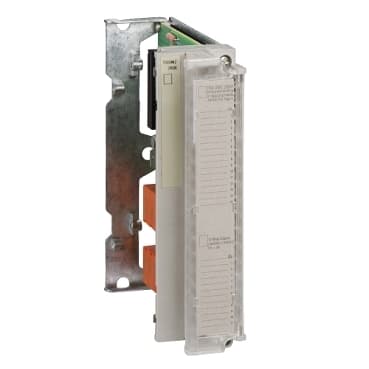

TSXDSZ32T2
Product ID:34553
Updated: 2026/7/15
Key Features
- 1Ensure high reliability and durability for long-lasting performance.
- 2Integrate easily with a compact design for various systems.
- 3Minimize energy loss with high operational efficiency.
- 4Handle versatile applications with wide input/output voltages.
- 5Operate safely with advanced protection features.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon TSX Micro automation platform | Product or Component Type | Discrete output module |
| Discrete output number | 32 screw terminal block | Discrete output voltage | 24 V DC |
| Discrete output current | 0.5 mA | Discrete output logic | Positive |
| Output voltage limits | 19...30 V | Output current limits | 0.625 A |
| Maximum leakage current | 0.5 mA at state 0 | [Ures] residual voltage | 0.3 V |
| Load impedance ohmic | 48 Ohm | Response Time | < 0.5 ms at state 1<br />< 0.5 ms at state 0 |
| Switching frequency | < 0.6/LI² Hz | Output overvoltage protection | By zener diode |
| Output short-circuit protection | Thermal circuit breaker<br />Current limiter | Reverse polarity protection | Reverse diode on power supply |
| Paralleling of outputs | Yes : 2 maximum | current consumption | 94 mA |
| Power dissipation in W | 0.15 W by channel<br />3.2 W by module | Isolation voltage | 1500 V 1 s |
| Net Weight | 0.93 lb(US) (0.42 kg) |
Specifications may be subject to change without notice
