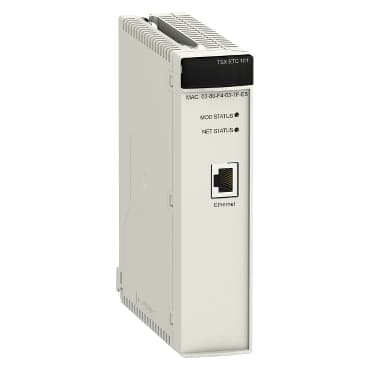

TSXETC101
Product ID:34573
Updated: 2026/7/15
Key Features
- 1Implement advanced safety features for secure operation.
- 2Enable high-performance power distribution in critical applications.
- 3Simplify installation with an intuitive user-friendly design.
- 4Utilize compact and durable construction for longevity.
- 5Integrate seamlessly with a wide range of systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Ethernet communication module |
| Physical interface | RJ45 - 10BASE-T/100BASE-TX 1 twisted pair | Transmission rate | 10/100 Mbit/s with automatic recognition |
| Communication service | CIP implicit messaging (I/O communication)<br />FDR server<br />Modbus TCP messaging<br />DHCP/BootP server<br />SNMP agent<br />CIP Explicit messaging (server and client messaging)<br />Quality of Service (QoS)<br />SOAP XML Web (client/server) | Supply | Via the power supply of the rack |
| Local signalling | for network communication status (Net Status) 1 LED (green/red)<br /> for backplane communication status (RUN) 1 LED (green)<br /> for error condition (ERR) 1 LED (red)<br /> for status of the module (Mod Status) 1 LED (green/red)<br /> for Ethernet activity (ACT) 1 LED (amber)<br /> for configuration status (STS) 1 LED (amber) | communication port protocol | EtherNet/IP<br />Modbus TCP |
| Maximum number of connections | 128 | Web server | Transparent ready class B30 |
| web feature | Data Editor (via PC terminal)<br />Rack viewer | marking | CE |
| Product compatibility | Unity Pro >= V5.0) | Current consumption | 400 mA 5 V DC |
| Module format | Standard | Net Weight | 0.75 lb(US) (0.34 kg) |
| Standards | CSA C22.2 No 142<br />UL 508 | Product Certifications | cUL<br />ODVA |
| IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Relative humidity | 10…95 % 140 °F (60 °C) without condensation |
Specifications may be subject to change without notice
