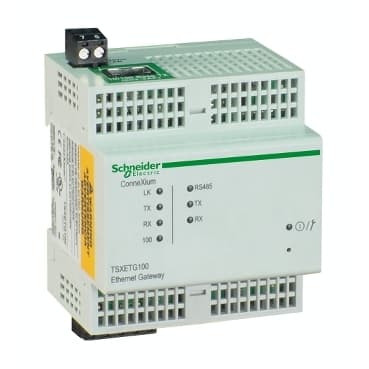

TSXETG100
Product ID:34574
Updated: 2026/7/14
Key Features
- 1Enable high-performance industrial communication for critical applications.
- 2Integrate a compact, space-saving design into tight panels.
- 3Utilize advanced thermal management for extended component lifespan.
- 4Deploy robust construction with high-quality materials for durability.
- 5Simplify connection to existing Modbus and Ethernet infrastructure systems.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | ConneXium | Product or Component Type | Ethernet Modbus gateway/router |
| Product destination | All products compatible with Modbus standard | Concept | Transparent Ready |
| Web server | Class B10 | [Us] rated supply voltage | 24 V DC |
| Web services | Via predefined web pages : diagnostic on Ethernet and Modbus links<br />Predefined web pages<br />Access to connected products list, reading of Modbus devices registers | Communication Service | SNMP agent, device administration with a SNMP manager<br />Read/write Modbus registers of connected devices<br />Miniature firewall on-board (IP address filtering) and password protection<br />BOOTP protocol, FDR client |
| Supply | Power supply device PoE IEEE 802.3af | Integrated connection type | Ethernet TCP/IP RJ45 10/100 Mbps 1 twisted pair<br />Serial link 5-way removable terminal block Modbus RTU and ASCII RS485 57.6 kbps<br />Serial link micro switches Modbus RTU and ASCII RS485 57.6 kbps<br />Serial link RJ45 RS232 38.4 kbps |
| Maximum Number of Connected Devices | Modbus serial link <32 | Port Ethernet | 10BASE-T/100BASE-TX |
| Mounting Support | Symmetrical DIN rail | marking | CE |
| Local signalling | for serial link communication (RS485, RX, TX) 3 LEDs<br /> for Ethernet communication (LK, RX, TX, 100) 4 LEDs | Width | 2.8 in (72 mm) |
| Height | 3.2 in (81 mm) | Depth | 3.0 in (76 mm) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Relative humidity | 5…95 % 104 °F (40 °C) without condensation |
| IP Degree of Protection | IP30 | Standards | EN 61000-4-2/3/4/5/6/8<br />UL 508<br />CSA C22.2 No 14-M91<br />EN 55022 FCC class A<br />EN 61000-6-2 |
| Product Certifications | cUL<br />UL |
Specifications may be subject to change without notice
