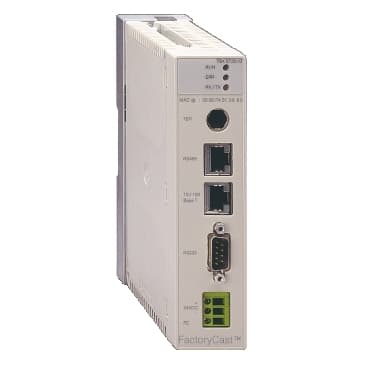

TSXETZ510
Product ID:34423
Updated: 2026/4/3
Key Features
- 1Enable robust 10/100 Mbit/s Ethernet connectivity for industrial applications. 2、Simplify integration with the transparent ready concept for seamless communication. 3、Power the module with a wide-range 24V DC industrial supply. 4、Install the compact unit (11.67x3.98x15.15cm) in tight spaces. 5、Achieve efficient data transfer with up to 56 kbit/s serial link.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | FactoryCast Gateway | Product or Component Type | Ethernet module |
| Kit composition | Web Designer software (CD-ROM)<br />User manual<br />Gateway module | Concept | Transparent Ready |
| Type of modem | Via telephone line<br />Via satellite<br />Via radio | Structure type | Heterogeneous industrial bus Ethernet IEEE 802.3 |
| Topology | Star Ethernet<br />Tree-structure Ethernet | Transmission Rate | 10/100 Mbit/s Ethernet<br />56 kbit/s maximum serial link by modem |
| Web services | Web pages defined by the user (8 MB available)<br />PLC diagnostics system function RackViewer<br />Access function to the PLC data and variables Data Editor<br />Maximum simultaneous connection of 8 standard browsers<br />Communication diagnostics function<br />IP configuration for TSX ETZ 410/510 module via standard browser<br />Graphic objects editor | Communication service | 1 kB client/server requests Uni-Telway<br />128 byte client/server requests Uni-Telway<br />128 byte synchronous requests Modbus<br />Client/server mode Modbus<br />Client/server mode Uni-Telway |
| [Us] rated supply voltage | 24 V DC | communication port protocol | Serial link by modem<br />Ethernet |
| Physical interface | RTC link RS232 serial link by modem | Exchange mode | Half or full duplex serial link by modem<br />Manchester-type baseband Ethernet |
| Transmission support medium | Double shielded twisted pair of type STP 10BASE-T ETHERNET<br />Ethernet cable category 5 100BASE-T ETHERNET<br />Shielded RS232 cable serial link by modem | Maximum Number of Connected Devices | Ethernet <64 star<br />Serial link by modem <2 star |
| Maximum cable distance between devices | 328.08 ft (100 m) between terminal device and hubs ETHERNET | Ethernet service | Remote terminal<br />Download of Uni-Telway PL7 applications<br />Inter-PLC communication in Uni-Telway or Modbus TCP/IP<br />Diagnostics module<br />Adjustment, debugging and modifications to the program<br />Scanned inputs/outputs service performed |
| Supply voltage limits | 19.2…30 V DC | Input overvoltage protection | 34 V |
| Power dissipation in W | 2.4…4 W | Electrical connection | 1 connector mini DIN for terminal port (TER address)<br />1 connector RJ45 for Uni-Telway auxiliary port RS485 serial link<br />1 connector SUB-D 9 for RS232 serial link (Modem)<br />1 connector RJ45<br />Screw terminal block for connecting to the external power supply |
| Local signalling | for RUN 1 LED<br /> for ERR 1 LED<br /> for RX/TX 1 LED | Current consumption | 100 mA 24 V DC<br />50...200 mA 24 V DC |
| Mounting Support | Mounting plate | Width | 1.57 in (39.83 mm) |
| Height | 6.0 in (151.5 mm) | Depth | 4.6 in (116.7 mm) |
| Net Weight | 0.62 lb(US) (0.28 kg) | Immunity to microbreaks | 1 ms |
| Standards | IEC 61131-2<br />IEC 1000-4-4 level 3<br />ANSI/IEEE Std 802.3 (4th edition 1993-07-08)<br />IEC 68-2-27, EA tests<br />IEC 1000-4-2 level 3<br />UL 508<br />IEC 1000-4-5<br />EN/IEC 50082-1<br />ISO/IEC 8802-3<br />CSA C22.2<br />IEC 1000-4-12<br />IEC 68-2-6, FC test<br />IEC 1000-4-3 level 3 | Product Certifications | RINA<br />GL<br />BV<br />DNV<br />LR<br />GOST<br />RRS |
| marking | CE | Ambient air temperature for operation | 32…140 °F (0…60 °C) IEC 61131-2 |
| Ambient air temperature for storage | -13…158 °F (-25…70 °C) IEC 61131-2 | Relative Humidity | 5…95 % without condensation for storage IEC 61131-2<br />10…95 % without condensation for operation |
| Operating altitude | 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
