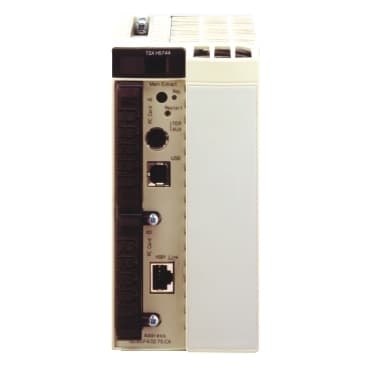

TSXH5744MC
Product ID:34455
Updated: 2026/4/3
Key Features
- 1Support up to 2048 discrete I/O and 256 analogue I/O. 2、Ensure continuous operation with Unity Hot Standby capability. 3、Equip with Ethernet, RS485, and USB for robust communication. 4、Configure flexibly with 6, 8, or 12 slot options. 5、Monitor system status with comprehensive LED indicators.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity Hot Standby processor |
| Software Designation | Unity Pro | Number of racks | 1 6/8/12 slots |
| Number of slots | 6<br />8<br />12 | Discrete I/O processor capacity | 2048 I/O |
| Analogue I/O processor capacity | 256 I/O | Number of application specific channel | 64 |
| Number of process control channel | 20 up to 60 simple loops | Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s)<br />Ethernet TCP/IP RJ45<br />USB port USB type A12 Mbit/s) |
| Port Ethernet | 10BASE-T/100BASE-TX | Communication module processor capacity | 4 |
| Memory description | Internal RAM (with PCMCIA card) 2048 kB program<br />Internal RAM (with PCMCIA card) 440 kB data<br />Internal RAM (without PCMCIA card) 440 kB program and data<br />PCMCIA card 16384 kB additional data storage | Maximum size of object areas | 32464 %MWi internal words located internal data<br />32760 %KWi constant words located internal data<br />440 kB data exchanged via CPU Sync link<br />8056 %Mi located internal bits<br />Unlimited (DFB and EFB function blocks) unlocated internal data<br />Unlimited (elementary and derived data) unlocated internal data |
| Application structure | 1 master task | Execution time per instruction | 0.039...0.057 µs Boolean without PCMCIA card<br />0.048...0.057 µs Boolean with PCMCIA card<br />0.054...0.073 µs word or fixed-point arithmetic with PCMCIA card<br />0.054...0.073 µs word or fixed-point arithmetic without PCMCIA card<br />0.055...0.063 µs floating points with PCMCIA card<br />0.055...0.063 µs floating points without PCMCIA card |
| Number of instructions per ms | 11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />11.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />15.75 Kinst/ms 100 % Boolean with PCMCIA card<br />15.75 Kinst/ms 100 % Boolean without PCMCIA card | System overhead | 1 ms master task |
| marking | CE | Local signalling | for Ethernet TCP/IP port ready (RUN) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for collision detection (COL) 1 LED (red)<br /> for Ethernet TCP/IP port fault (ERR) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow)<br /> for Ethernet link diagnostics (STS) 1 LED (yellow)<br /> for reception activity (RX) 1 LED (yellow)<br /> for transmission activity (TX) 1 LED (yellow) |
| Current consumption | 1880 mA 5 V DC | Module format | Double |
| Net Weight | 1.34 lb(US) (0.61 kg) | Standards | CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group D<br />UL 508<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />73/23/EEC<br />92/31/EEC<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group A<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group C |
| Product Certifications | GL<br />RMRS<br />LR<br />DNV<br />RINA<br />ABS<br />BV | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC<br />Conformal coating Humiseal 1A33 |
| IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
