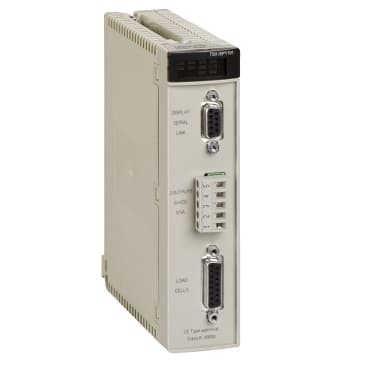

TSXISPY101
Product ID:34459
Updated: 2026/7/15
Key Features
- 1Achieve precise weight measurements with 50 readings per second.
- 2Leverage 20-bit resolution for 1,048,576 data points.
- 3Ensure compliance with international CE safety certification.
- 4Reduce energy costs with low 145 mA power consumption.
- 5Integrate easily using the compact 0.32 kg design.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | ISP Plus weighing module |
| Number of measurement input | 1 | Resolution | 1048576 points |
| Analogue input resolution | 20 bits | Measuring rate | 50 measurements per second |
| input impedance | > 1 MOhm | Input compatibility | Load cell 1…8 350 Ohm yes <984.3 ft (300 m) |
| Sensor power supply | 10 V DC | Output compatibility | Discrete reflex 2 positive |
| Discrete output voltage | 24 V DC | Discrete output current | 500 mA |
| Response time on output | 1 ms | Transmission rate | 9.6 kbit/s RS485 non isolated <= 30 m discrete reflex weight indicator |
| Voltage division | 1 µV | Electrical connection | 1 connector screw terminal block for connecting 2 discrete reflex<br />1 female connector SUB-D 15 for the indicator input<br />1 female connector SUB-D 9 for RS485 serial link to the weight indicator |
| marking | CE | Current consumption | 145 mA 24 V rack<br />150 mA 5 V DC |
| Module format | Standard | Net Weight | 0.93 lb(US) (0.42 kg) |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Product Certifications | SDM No 97.06 |
Specifications may be subject to change without notice
