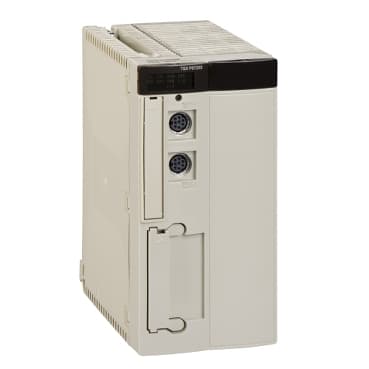

TSXP57203M
Product ID:34627
Updated: 2026/4/3
Key Features
- 1Support up to 1024 discrete and 80 analog I/O points. 2、Compatible with PL7 Junior/Pro software for versatile control tasks. 3、Integrate with PCMCIA cards for up to 160 K words of memory. 4、Feature non-isolated serial links and support various fieldbus modules. 5、Execute instructions at high speeds, including 0.19 µs boolean operations.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Double-format PL7 processor |
| Software Designation | PL7 Junior/Pro | Number of racks | 16 4/6/8 slots<br />8 12 slots |
| Number of slots | 96<br />64<br />128 | Discrete I/O processor capacity | 1024 I/O |
| Analogue I/O processor capacity | 80 I/O | Number of application specific channel | 24 |
| Number of process control channel | 10 up to 30 simple loops | Integrated connection type | Non isolated serial link 2 female mini DIN19.2 kbit/s) |
| Communication module processor capacity | 1 fieldbus module (none if CANopen used)<br />1 network module<br />4 AS-Interface bus modules<br />1 CANopen | Memory description | Internal RAM (with PCMCIA card) 48 Kwords data<br />Internal RAM (without PCMCIA card) 48 Kwords program and data<br />PCMCIA card 160 Kwords program<br />PCMCIA card 2688 Kwords additional data storage |
| Maximum size of object areas | 30.5 %MWi internal words located internal data<br />32 %KWi constant words located internal data<br />8132 %Mi located internal bits | Application structure | 1 fast task<br />1 master task<br />64 event tasks |
| Execution time per instruction | 0.19 µs Boolean without PCMCIA card<br />0.21 µs Boolean with PCMCIA card<br />0.25 µs word or fixed-point arithmetic without PCMCIA card<br />0.42 µs word or fixed-point arithmetic with PCMCIA card<br />2.6 µs floating points with PCMCIA card<br />2.6 µs floating points without PCMCIA card | Number of instructions per ms | 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />3.7 Kinst/ms 100 % Boolean with PCMCIA card<br />4.76 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.35 ms fast task<br />1 ms master task | marking | CE |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on the terminal port (TER) 1 LED (yellow) | Current consumption | 750 mA 5 V DC |
| Module format | Double | Net Weight | 1.15 lb(US) (0.52 kg) |
| Standards | CSA C22.2 No 142<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group A<br />IEC 61131-2<br />89/336/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />92/31/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D | Product Certifications | LR<br />DNV<br />RMRS<br />GL<br />RINA<br />BV<br />ABS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
