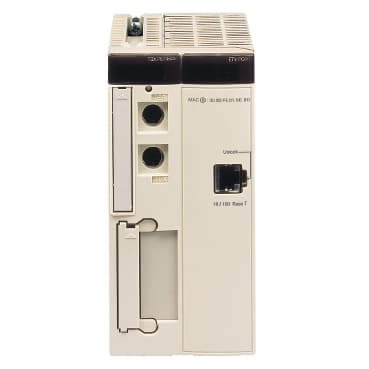

TSXP572623M
Product ID:34635
Updated: 2026/4/3
Key Features
- 1Deliver high performance for complex automation tasks with this double-format PL7 processor. 2、Support up to 1024 discrete and 80 analog I/O points for versatile applications. 3、Enable seamless data transfer via Ethernet TCP/IP and serial communication ports. 4、Enhance system scalability with a modular two-rack design. 5、Ensure reliable operation with a 2-year warranty and protective TC treatment.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Double-format PL7 processor |
| Software Designation | PL7 Junior/Pro | Concept | Transparent Ready |
| Number of racks | 16 4/6/8 slots<br />8 12 slots | Number of slots | 64<br />96<br />128 |
| Discrete I/O processor capacity | 1024 I/O | Analogue I/O processor capacity | 80 I/O |
| Number of application specific channel | 24 | Number of process control channel | 10 up to 30 simple loops |
| Integrated connection type | Non isolated serial link 2 female mini DIN19.2 kbit/s)<br />Ethernet TCP/IP RJ4510/100 Mbit/s) | Communication module processor capacity | 1 fieldbus module (none if CANopen used)<br />4 AS-Interface bus modules<br />1 CANopen |
| Memory description | Internal RAM (with PCMCIA card) 48 Kwords data<br />Internal RAM (without PCMCIA card) 48 Kwords program and data<br />PCMCIA card 160 Kwords program<br />PCMCIA card 2688 Kwords additional data storage | Maximum size of object areas | 30.5 %MWi internal words located internal data<br />32 %KWi constant words located internal data<br />8132 %Mi located internal bits |
| Application structure | 1 master task<br />1 fast task<br />64 event tasks | Execution time per instruction | 0.19 µs Boolean without PCMCIA card<br />0.21 µs Boolean with PCMCIA card<br />0.25 µs word or fixed-point arithmetic without PCMCIA card<br />0.42 µs word or fixed-point arithmetic with PCMCIA card<br />2.6 µs floating points with PCMCIA card<br />2.6 µs floating points without PCMCIA card |
| Number of instructions per ms | 2.5 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />3.57 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />3.7 Kinst/ms 100 % Boolean with PCMCIA card<br />4.76 Kinst/ms 100 % Boolean without PCMCIA card | System overhead | 0.35 ms fast task<br />1 ms master task |
| marking | CE | Local signalling | for Ethernet TCP/IP port ready (RUN) 1 LED (green)<br /> for processor running (RUN) 1 LED (green)<br /> for collision detection (COL) 1 LED (red)<br /> for Ethernet TCP/IP port fault (ERR) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on the terminal port (TER) 1 LED (yellow)<br /> for Ethernet link diagnostics (STS) 1 LED (yellow)<br /> for reception activity (RX) 1 LED (yellow)<br /> for transmission activity (TX) 1 LED (yellow) |
| Current consumption | 1110 mA 5 V DC | Module format | Double |
| Net Weight | 1.68 lb(US) (0.76 kg) | Standards | CSA C22.2 No 142<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group D<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group A<br />CSA C22.2 No 213 Class I Division 2 Group B<br />93/68/EEC<br />92/31/EEC<br />UL 508<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C |
| Product Certifications | BV<br />DNV<br />RMRS<br />ABS<br />GL<br />LR<br />RINA | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
| IP Degree of Protection | IP20 | Pollution degree | 2 |
