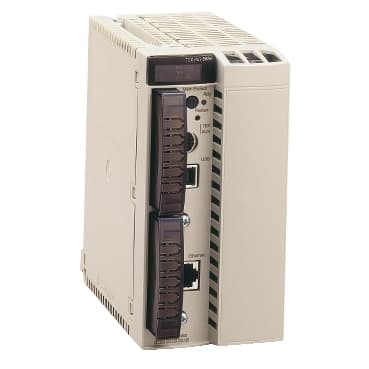

TSXP57554MC
Product ID:34704
Updated: 2026/4/3
Key Features
- 1Ensure high reliability and durability for long-lasting performance. 2、Utilize a compact design with advanced thermal management. 3、Meet stringent industry standards for safety and quality compliance. 4、Access versatile connectivity options for easy system integration. 5、Deploy for applications requiring high power density and control.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Unity processor |
| Software Designation | Unity Pro | Number of racks | 16 4/6/8 slots<br />8 12 slots |
| Number of slots | 128<br />96<br />64 | Discrete I/O processor capacity | 2040 I/O |
| Analogue I/O processor capacity | 512 I/O | Number of application specific channel | 64 |
| Number of process control channel | 30 up to 90 simple loops | Integrated connection type | Non isolated serial link female mini DIN RS485)19.2 kbit/s)<br />Fipio manager (127 agents) SUB-D 9<br />USB port12 Mbit/s) |
| Communication module processor capacity | 4<br />1<br />8<br />5 | Memory description | Internal RAM (with PCMCIA card) 1024 kB data<br />Internal RAM (with PCMCIA card) 7168 kB program<br />Internal RAM (without PCMCIA card) 1024 kB program and data<br />PCMCIA card 16384 kB additional data storage |
| Maximum size of object areas | 128 %MWi internal words located internal data<br />32768 %Mi located internal bits<br />64 %KWi constant words located internal data<br />Unlimited (DFB and EFB function blocks) unlocated internal data<br />Unlimited (elementary and derived data) unlocated internal data | Application structure | 4 auxiliary tasks<br />32 timers<br />1 master task<br />1 fast task<br />128 event tasks |
| Execution time per instruction | 0.0375...0.045 µs Boolean with PCMCIA card<br />0.0375...0.045 µs Boolean without PCMCIA card<br />0.045...0.06 µs word or fixed-point arithmetic with PCMCIA card<br />0.045...0.06 µs word or fixed-point arithmetic without PCMCIA card<br />0.48...0.56 µs floating points with PCMCIA card<br />0.48...0.56 µs floating points without PCMCIA card | Number of instructions per ms | 14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic with PCMCIA card<br />14 Kinst/ms 65 % Boolean + 35 % fixed arithmetic without PCMCIA card<br />20.26 Kinst/ms 100 % Boolean with PCMCIA card<br />20.26 Kinst/ms 100 % Boolean without PCMCIA card |
| System overhead | 0.07 ms fast task<br />1 ms master task | marking | CE |
| Local signalling | for processor running (RUN) 1 LED (green)<br /> for activity on Fipio bus (FIP) 1 LED (red)<br /> for I/O module or configuration fault (I/O) 1 LED (red)<br /> for processor or system fault (ERR) 1 LED (red)<br /> for activity on TER or AUX terminal port (TER) 1 LED (yellow) | Current consumption | 1680 mA 5 V DC |
| Module format | Double | Net Weight | 1.23 lb(US) (0.56 kg) |
| Standards | CSA C22.2 No 213 Class I Division 2 Group C<br />CSA C22.2 No 142<br />89/336/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group D<br />93/68/EEC<br />IEC 61131-2<br />UL 508<br />92/31/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group A | Product Certifications | DNV<br />RMRS<br />RINA<br />LR<br />BV<br />GL<br />ABS |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC<br />Conformal coating Humiseal 1A33 | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
Specifications may be subject to change without notice
