TSXPBY100
Product ID:34714
Updated: 2026/4/3
Key Features

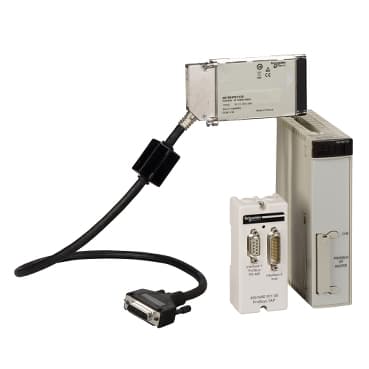

- 1Integrate seamlessly into Premium and Atrium slot-PLC systems. 2、Include a complete kit with PCMIA card, cable, host module, and T-junction box. 3、Achieve high-speed transmission up to 12 Mbit/s using NRZ mode. 4、Support extensive networks with up to 126 slaves and 3872 I/Os. 5、Consume minimal power at only 400 mA for enhanced efficiency.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Profibus DP | Product or Component Type | Profibus DP V0 module kit |
| Kit composition | Host module for the PCMCIA card<br />T-junction box enabling the tap link of the main bus<br />Profibus DP PCMIA card with its integrated connecting cable (0.6 m) | Product Compatibility | For Atrium slot-PLC<br />For Premium PLC |
| Structure type | Industrial bus | Physical interface | RS485 |
| Method of access | Master class 1<br />Master class 2 | Mode of Transmission | NRZ |
| Transmission support medium | twisted shielded pairs cable | Transmission rate | 12 Mbit/s, 328.08 ft (100 m) without repeater<br />12 Mbit/s, 1312.3 ft (400 m) with 3 repeaters<br />9.6 kbit/s, 3937.008 ft (1200 m) without repeater<br />9.6 kbit/s, 15748.03 ft (4800 m) with 3 repeaters |
| Number of server device(s) | 126 | Number of inputs | 3872 |
| Number of outputs | 3872 | Communication service | Check slave configuration (on power up) class 1 master<br />Manage monitoring request (Global CONTROL and Get Master Diag) class 2 master<br />No master/master dialogue class 2 master<br />Profibus FMS message handling not supported class 1 master<br />Profibus FMS message handling not supported class 2 master<br />Read/write DP slave I/O data class 1 master<br />Set slave parameters (on power up) class 1 master<br />Transfer slave diagnostic data class 1 master |
| Current consumption | 400 mA 5 V DC internal | Module format | Standard |
| Net Weight | 1.92 lb(US) (0.87 kg) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
