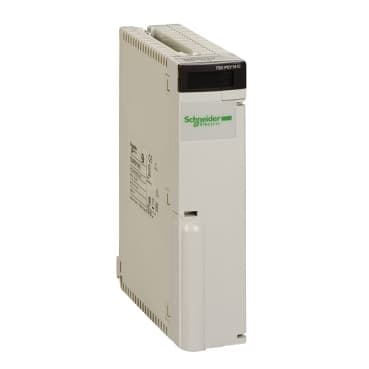

TSXPSY1610M
Product ID:34723
Updated: 2026/7/14
Key Features
- 1Deliver high-performance 1610W output for demanding applications.
- 2Integrate easily with a compact design for various systems.
- 3Operate flexibly with a wide input voltage range.
- 4Ensure optimal performance with high efficiency and low noise.
- 5Rely on robust build quality and long lifespan.
Need a quote? Enter your quantity and get pricing fast.
Qty
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Power supply module |
| Primary voltage | 24 V DC 19.2...30 V | Input current | <= 1500 mA 24 V |
| Inrush current | 100 A 24 V | I²t on activation | 12.5 A².s |
| It on activation | 0.2 A.s | Protection type | Internal fuse 3.5 A 5 x 20 mm time-delayed primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
| Total useful secondary power | 30 W | Secondary power | 15 W 24 V DC<br />15 W 5 V DC |
| Current at secondary voltage | 0.6 A 24 V DC relay power supply<br />3 A 5 V DC | marking | CE |
| Local signalling | for presence of voltages (OK) 1 LED (green)<br /> for battery fault (BAT) 1 LED (red) | Module format | Standard |
| Net Weight | 1.19 lb(US) (0.54 kg) | Immunity to microbreaks | 1 ms |
| Dielectric strength | 2000 V primary/earth<br />2000 V primary/secondary | Standards | 93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 142<br />CSA C22.2 No 213 Class I Division 2 Group C<br />IEC 61131-2<br />UL 508<br />CSA C22.2 No 213 Class I Division 2 Group A<br />92/31/EEC<br />73/23/EEC<br />CSA C22.2 No 213 Class I Division 2 Group D<br />89/336/EEC |
| Product Certifications | RMRS<br />LR<br />ABS<br />RINA<br />BV<br />GL<br />DNV | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage |
| Operating altitude | 0...6561.68 ft (0...2000 m) | Protective treatment | TC |
| IP Degree of Protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
