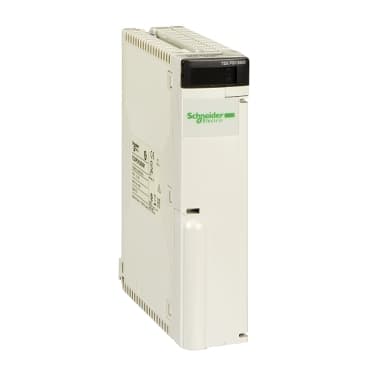

TSXPSY5520M
Product ID:34731
Updated: 2026/4/3
Key Features
- 1Operate within a wide 24 to 48 V DC range for versatile application compatibility. 2、Utilize a double module format to provide essential system redundancy and reliability. 3、Protect your system with integrated internal fuse, overload, overvoltage, and short-circuit protection. 4、Deliver 50 W of total useful secondary power to drive various industrial components reliably. 5、Ensure optimal performance in harsh conditions with built-in thermal conductivity (TC) design.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Power supply module |
| Primary voltage | 24...48 V DC 19.2...60 V | Input current | <= 1500 mA 48 V<br /><= 3000 mA 24 V |
| Inrush current | 15 A 24 V<br />15 A 48 V | I²t on activation | 50 A².s 24 V<br />55 A².s 48 V |
| It on activation | 6 A.s 48 V<br />7 A.s 24 V | Protection type | Internal fuse 5 A 5 x 20 mm time-delayed primary circuit<br />Overload protection secondary circuit<br />Overvoltage protection secondary circuit<br />Short-circuit protection secondary circuit |
| Total useful secondary power | 50 W | Secondary power | 19 W 24 V DC<br />35 W 5 V DC |
| Current at secondary voltage | 0.8 A 24 V DC relay power supply<br />7 A 5 V DC | Insulation resistance | >= 10 mOhm primary/ground<br />>= 10 mOhm primary/secondary |
| marking | CE | Local signalling | for presence of voltages (OK) 1 LED (green)<br /> for battery fault (BAT) 1 LED (red) |
| Module format | Double | Net Weight | 1.96 lb(US) (0.89 kg) |
| Immunity to microbreaks | 1 ms | Dielectric strength | 2000 V primary/earth<br />2000 V primary/secondary |
| Standards | CSA C22.2 No 213 Class I Division 2 Group D<br />93/68/EEC<br />CSA C22.2 No 213 Class I Division 2 Group C<br />89/336/EEC<br />UL 508<br />73/23/EEC<br />92/31/EEC<br />CSA C22.2 No 142<br />IEC 61131-2<br />CSA C22.2 No 213 Class I Division 2 Group B<br />CSA C22.2 No 213 Class I Division 2 Group A | Product Certifications | RMRS<br />DNV<br />LR<br />ABS<br />RINA<br />GL<br />BV |
| Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
| Relative Humidity | 10…95 % without condensation for operation<br />5…95 % without condensation for storage | Operating altitude | 0...6561.68 ft (0...2000 m) |
| Protective treatment | TC | IP Degree of Protection | IP20 |
| Pollution degree | 2 |
