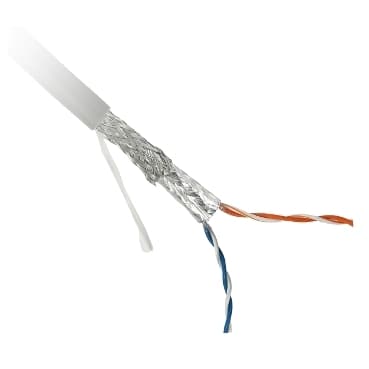

TSXSCMCN050
Product ID:34763
Updated: 2026/4/3
Key Features
- 1Achieve PLe and SIL3 compliance for maximum safety. 2、Monitor multiple safety functions with modular controllers. 3、Reduce time-to-market using pre-designed solutions. 4、Increase profitability via standalone or embedded networks. 5、Meet Green Premium standards with recyclable packaging.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Preventa Safety automation | accessory / separate part type | Connecting cable |
| accessory / separate part category | Cabling accessory | Accessory / separate part destination | RS485 safe communication expansion module |
| Product Compatibility | XPSMCMCO0000S... | Cable length | 164.04 ft (50 m) |
| Electrical connection | Flying leads | AWG Gauge | AWG 24 |
| Cable insulation material | PE (polyethylene) | Type of cable | Twisted pair white/blue<br />Twisted pair orange/white |
| Cable shielding type | S/FTP | [Ue] rated operational voltage | 300 Vrms |
| Permissible current | 2.1 A | Cable capacitance | 0.2096 nF between two conductors)<br />0.3772 nF between conductor and shield) |
| Attenuation | 1.97 dB | Nominal velocity propagation | 66 % |
| Delay skew | 1.54 ns | Insulation resistance | 24 MOhm nominal conductor DC resistance<br />2.2 MOhm nominal outer shield DC resistance |
| Net Weight | 10.1 lb(US) (4.6 kg) | Ambient Air Temperature for Operation | -4…176 °F (-20…80 °C) |
Specifications may be subject to change without notice
