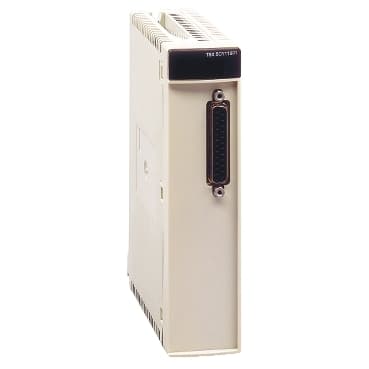

TSXSCY11601
Product ID:34779
Updated: 2026/4/3
Key Features
- 1Enable reliable RS485 communication for industrial networks. 2、Support up to 32 devices with robust cable. 3、Find recommended replacement options for this discontinued module. 4、Ensure secure data transmission in demanding applications. 5、Integrate seamlessly with various automation systems.
Technical Specifications
Detailed engineering parameters
| Parameter | Value | Parameter | Value |
|---|---|---|---|
| Range of Product | Modicon Premium Automation platform | Product or Component Type | Communication module |
| Software Designation | Unity Pro | Structure type | Heterogeneous industrial bus |
| Product Compatibility | Premium<br />Atrium | Method of access | Master/slave type |
| Integrated connection type | 1 serial link 1 SUB-D 25 | communication port protocol | Modbus |
| Communication port support | RS485 isolated | Mode of Transmission | Asynchronous in baseband |
| Transmission frame | RTU/ASCII<br />Character mode<br />Uni-Telway | Transmission Rate | 1.2...19.2 kbit/s |
| Transmission support medium | 2 twisted shielded pairs cable | Number of devices | 32 |
| Number of addresses | 0…247 | Bus length | 0.0000000000…4265.09 ft (0…1300 m) character mode<br />0.0000000000…4265.09 ft (0…1300 m) Modbus<br />0.0000000000…4265.09 ft (0…1300 m) Uni-Telway |
| Maximum tap links length | 49.2 ft (15 m) | Requests | 120 words per request<br />1920 bits per request |
| Control parameter | One CRC 16 on each frame | Monitoring function | Diagnostic counters<br />Event counters |
| Modbus funtions available | Event connection Modbus master 0C<br />Event connection Modbus slave 0C<br />Event counter Modbus master 0B<br />Event counter Modbus slave 0B<br />Identification Modbus slave 11<br />Slave identification Modbus master 11<br />Write n output bits Modbus slave 0F<br />Write n output words Modbus slave 10<br />Diagnostic Modbus master 08<br />Diagnostic Modbus slave 08<br />Exceptional read status Modbus master 07<br />Exceptional read status Modbus slave 07<br />Read bits Modbus master 01<br />Read input bits Modbus master 02<br />Read input bits Modbus master 04<br />Read n input bits Modbus slave 02<br />Read n input words Modbus slave 04<br />Read n output bits Modbus slave 01<br />Read n output words Modbus slave 03<br />Read words Modbus master 03<br />Write 1 bits or n bits Modbus master 05<br />Write 1 input word Modbus slave 06<br />Write 1 output bit Modbus slave 05<br />Write 1 word or n word Modbus master 06 | Local signalling | for communication (CH0) 1 LED<br /> for internal fault, module failure (ERR) 1 LED<br /> for module operating (RUN) 1 LED |
| Current consumption | 350 mA 5 V DC | Module format | Standard |
| Net Weight | 0.75 lb(US) (0.34 kg) | Ambient Air Temperature for Operation | 32…140 °F (0…60 °C) |
| Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) | Relative Humidity | 5…95 % without condensation |
| Operating altitude | <= 6561.68 ft (2000 m) |
Specifications may be subject to change without notice
